The proliferation of unmanned military vehicles tasked with critical communications and radar requirements drives the need for powerful data acquisition and signal processing products that must fit into increasingly tighter spaces.

New industry standards meeting these needs offer smaller circuit boards and enclosures, optical gigabit serial links, and advanced thermal management strategies. With new resources found in the latest processors and FPGAs, system designers can now create powerful, compact systems surpassing performance levels achievable only a few years ago.

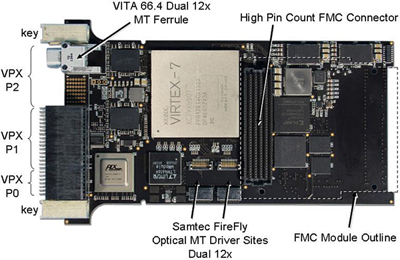

The Pentek Model 5973 3U OpenVPX FMC Carrier uses Samtec FireFlyTM Micro Flyover which delivers 12 optical fiber pairs to the proposed VITA 66.4 backplane I/O
The Pentek Model 5973 3U OpenVPX FMC Carrier uses Samtec FireFlyTM Micro Flyover which delivers 12 optical fiber pairs to the proposed VITA 66.4 backplane I/O






The SystemFlow® Simulator demonstrates the Configuration, Record, Playback and Status screens to illustrate the intuitive controls and indicators of the recorder.

It also includes the SystemFlow Signal Viewer to display simulated live signals being digitized and recorded by a Pentek analog signal recorder.

SystemFlow Simulator

SystemFlow Software

The SystemFlow Signal Viewer includes a virtual oscilloscope and a virtual spectrum analyzer for signal monitoring in both the time and frequency domains.

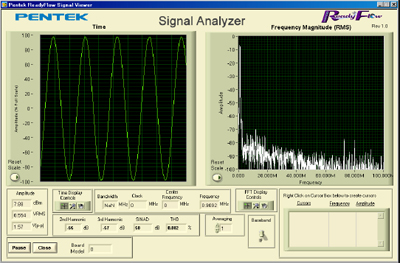

ReadyFlow Signal Analyzer

Pentek's Signal Analyzer is a full-featured analysis tool that continuously displays live signals in both time and frequency domains. The signal analyzer is available with all SPARK development systems.






Model 8267 SPARK Development System for OpenVPX
SPARK Development System

The Model 8267 is a fully-integrated, 3U OpenVPX development system for Pentek Cobalt, Onyx and Flexor® software radio, data acquisition and I/O boards. It was created to save engineers the time and expense associated with developing a system that ensures optimum performance of Pentek boards.







Model 8266 SPARK PC Development System
SPARK Development System

The Model 8266 resolves the typical hardware and software compatibility obstacles inherent in new PC development platforms. All hardware is installed in appropriate slots with proper cabling, power and cooling strategies, and optimized BIOS.





Product Focus

Flexor Virtex-7 Processor and FMC Carrier - 3U VPX

Features

  • VITA-57.1 FMC site offers access to a wide range of possible I/O
  • Supports Xilinx Virtex-7 VXT FPGAs
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2 and 3) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-66.4 and VITA-65 (OpenVPXTM System Specification)
  • Ruggedized and conduction-cooled versions available
Model 5973
Model 5973

Flexor FMC family

GateXpress FPGA-PCIe Configuration Manager




Product Focus

Flexor® 4-Ch. 250 MHz, 16-bit A/D, 2-Ch. 800 MHz, 16-bit D/A - FMC

Features

  • Four 250 MHz 16-bit A/Ds
  • One digital upconverter
  • Two 800 MHz 16-bit D/As
  • Sample clock synchronization to an external system reference
  • VITA 57 FMC compatible
Model 3312
Model 3312

Flexor FMC family

ReadyFlow Board Support Package (BSP)




Product Focus

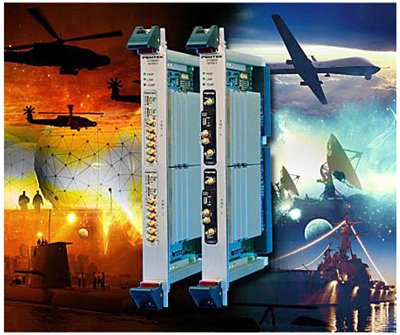

Pentek Launches Extensive Line of Cobalt and Onyx 6U OpenVPX Products

Pentek has just announced the addition of 6U OpenVPX boards to the Pentek product line: the Models 57xxx with one XMC module installed and the Models 58xxx with two XMC modules installed. These products extend the Pentek building block strategy of using Cobalt Virtex-6 and Onyx Virtex-7 XMC FPGA modules on carriers for open architecture industry-standard form factors.

Pentek Launches Extensive Line of Cobalt and Onyx 6U OpenVPX Products

Pentek's 6U VPX boards for data acquisition, software radio and digital signal processing offer flexible, gigabit serial fabric connections for demanding radar, beamforming, communications, and signal intelligence applications. These new boards are designed for both lab and rugged environments with deployable conduction-cooling options.

Model
Description
Model 74841 2-Ch 3.6 GHz or 4-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 6U VPX
Model 72841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 6U VPX
Model 5894 High-Speed Clock Generator - 6U VPX
Model 5892 High-Speed System Synchronization and Distribution Amplifier - 6U VPX
Model 5891 Programmable Multifrequency Clock Synthesizer - 6U VPX
Model 5890 Multifrequency Clock Synthesizer - 6U VPX
Model 58861 8-Channel 200 MHz A/D with DDC, Kintex UltraScale FPGA - 6U VPX
Model 58841 2-Ch 3.6 GHz or 4-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 6U VPX
Model 58791 Dual L-Band RF Tuner and 4-Channel 500 MHz A/D with Virtex-7 FPGA - 6U VPX
Model 58761 8-Channel 200 MHz A/D with DDC, Virtex-7 FPGA - 6U VPX
Model 58760 8-Channel 200 MHz, 16-bit A/D with Virtex-7 FPGA - 6U VPX
Model 58751 4-Ch 500 MHz A/D with DDC & 4-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 6U VPX
Model 58741 2-Channel 3.6 GHz or 4-Channel 1.8 GHz 12-bit A/D with DDC - 6U VPX
Model 58730 2-Ch 1 GHz A/D and D/A with Virtex-7 FPGA - 6U VPX
Model 58721 6-Ch 200 MHz A/D with DDC & 4-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 6U VPX
Model 58720 6-Channel 200 MHz A/D and 4-Channel 800 MHz D/A with Virtex-7 FPGA - 6U VPX
Model 58690 L-Band RF Tuner and 4-Channel 200 MHz A/D with Virtex-6 FPGA - 6U VPX
Model 58671 8-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - 6U VPX
Model 58670 8-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - 6U VPX
Model 58664 8-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - 6U VPX
Model 58663 2200-Channel GSM Channelizer wih Quad A/D - 6U VPX
Model 58662 8-Channel 200 MHz A/D with 64-Channel DDC, Virtex-6 FPGA - 6U VPX
Model 58661 8-Channel 200 MHz A/D with DDC, Virtex-6 FPGA - 6U VPX
Model 58660 8-Channel 200 MHz, 16-bit A/D with Virtex-6 FPGA - 6U VPX
Model 58651 4-Ch 500 MHz A/D with DDC & 4-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - 6U VPX
Model 58650 4-Channel 500 MHz A/D and 4-Channel 800 MHz D/A with Virtex-6 FPGA - 6U VPX
Model 58641 2-Channel 3.6 GHz or 4-Channel 1.8 GHz 12-bit A/D with DDC - 6U VPX
Model 58640 2-Channel 3.6 GHz or 4-Channel 1.8 GHz 12-bit A/D with Virtex-6 FPGA - 6U VPX
Model 58630 2-Ch 1 GHz A/D and D/A with Virtex-6 FPGA - 6U VPX
Model 58624 Adaptive Relay, Virtex-6 FPGA - 6U VPX
Model 58621 6-Ch 200 MHz A/D with DDC & 4-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - 6U VPX
Model 58620 6-Channel 200 MHz A/D and 4-Channel 800 MHz D/A with Virtex-6 FPGA - 6U VPX
Model 58611 Octal Serial FPDP Interface with Virtex-6 FPGA - 6U VPX
Model 58610 LVDS Digital I/O with Virtex-6 FPGA - 6U VPX
Model 5794 High-Speed Clock Generator - 6U VPX
Model 5792 High-Speed System Synchronization and Distribution Amplifier - 6U VPX
Model 5791 Programmable Multifrequency Clock Synthesizer - 6U VPX
Model 5790 Multifrequency Clock Synthesizer - 6U VPX
Model 57861 4-Channel 200 MHz A/D with DDC, Kintex UltraScale FPGA - 6U VPX
Model 57841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 6U VPX
Model 57791 L-Band RF Tuner and 2-Channel 500 MHz A/D with Virtex-7 FPGA - 6U VPX
Model 57761 4-Channel 200 MHz A/D with DDC, Virtex-7 FPGA - 6U VPX
Model 57760 4-Channel 200 MHz, 16-bit A/D with Virtex-7 FPGA - 6U VPX
Model 57751 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 6U VPX
Model 57741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 6U VPX
Model 57730 1 GHz A/D and D/A with Virtex-7 FPGA - 6U VPX
Model 57721 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - 6U VPX
Model 57720 3-Channel 200 MHz A/D and 2-Channel 800 MHz D/A with Virtex-7 FPGA - 6U VPX
Model 57690 L-Band RF Tuner and 2-Channel 200 MHz A/D with Virtex-6 FPGA - 6U VPX
Model 57671 4-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - 6U VPX
Model 57670 4-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - 6U VPX
Model 57664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - 6U VPX
Model 57663 1100-Channel GSM Channelizer wih Quad A/D - 6U VPX
Model 57662 4-Channel 200 MHz A/D with 32-Channel DDC, Virtex-6 FPGA - 6U VPX
Model 57661 4-Channel 200 MHz A/D with DDC, Virtex-6 FPGA - 6U VPX
Model 57660 4-Channel 200 MHz, 16-bit A/D with Virtex-6 FPGA - 6U VPX
Model 57651 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - 6U VPX
Model 57650 2-Channel 500 MHz A/D and 2-Channel 800 MHz D/A with Virtex-6 FPGA - 6U VPX
Model 57641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 6U VPX
Model 57640 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with Virtex-6 FPGA - 6U VPX
Model 57630 1 GHz A/D and D/A with Virtex-6 FPGA - 6U VPX
Model 57624 Adaptive Relay, Virtex-6 FPGA - 6U VPX
Model 57621 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - 6U VPX
Model 57620 3-Channel 200 MHz A/D and 2-Channel 800 MHz D/A with Virtex-6 FPGA - 6U VPX
Model 57611 Quad Serial FPDP Interface with Virtex-6 FPGA - 6U VPX
Model 57610 LVDS Digital I/O with Virtex-6 FPGA - 6U VPX
