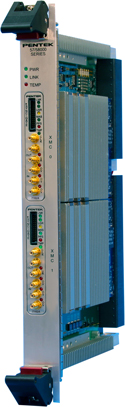

Model 58624 Adaptive Relay, Virtex-6 FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Modifies 68 IF signals between input and output
  • Up to 80 MHz IF bandwidth
  • Four 200 MHz 16-bit A/Ds
  • Four 800 MHz 16-bit D/As
  • 68 DDCs and 68 DUCs (digital downconverters and digital upconverters)
  • Signal drop/add/replace
  • Frequency shifting and hopping
  • Amplitude boost and attenutation
  • PCI Express Gen 1: x4 or x8



Request a Quote

Model 58624

Cobalt Xilinx Virtex-6

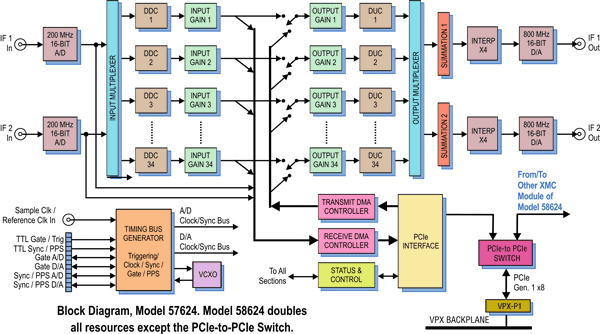

Model 58624 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71620 Programmer's Reference ReadyFlow Board Support Libraries for Models 71620, 71621, and 71624 3.0 (4/1/2016)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3A (10/3/2017)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58624
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58624

Software Products - ( top )

Model
Option
Description
4953 624 GateFlow FPGA Design Kit for Pentek Modules
4994A 624 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 624 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 624 ReadyFlow Board Support Packages (BSPs) for VxWorks
