Model 5791 Programmable Multifrequency Clock Synthesizer - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Simultaneous synthesis of up to five different clocks
  • Eight SMC clock outputs
  • Typical phase noise: -105 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 to 100 MHz
  • Four programmable VCXOs with 32-bit tuning resolution
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 700 MHz
  • Control and status over the VPX backplane



Request a Quote

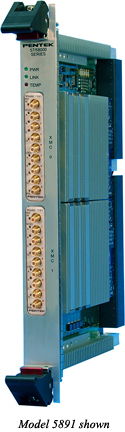

Model 5791



Model 5791 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.
