Model 58610 LVDS Digital I/O with Virtex-6 FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • 32 or 64 bits of LVDS digital I/O
  • One or two LVDS clocks
  • One or two LVDS data valid
  • One or two LVDS data suspend
  • Supports LXT and SXT Virtex-6 FPGAS
  • One or two DMA controllers move data to and from system memory
  • Up to 2 or 4 GB of DDR3
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O to the carrier board
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 58810



Request a Quote

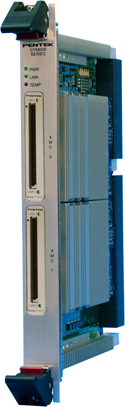

Model 58610

Cobalt Xilinx Virtex-6


Model 58610 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71610 Programmer's Reference ReadyFlow Board Support Libraries for Model 71610 1.1 (6/20/2016)
815.71610 User's Guide Model 4995A Option 161 Windows ReadyFlow BSP for Models 71610 1.0A (10/9/2017)
816.71610 User's Guide Model 4994A Option 610 Linux ReadyFlow BSP for Model 71610 1.0 (6/21/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58610
Contact Pentek
For Manual
Model 4994A ReadyFlow Board Support Packages (BSPs) for Linux for Model 58610
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58610

Software Products - ( top )

Model
Option
Description
4953 610 GateFlow FPGA Design Kit for Pentek Modules
4994A 610 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 610 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 610 ReadyFlow Board Support Packages (BSPs) for VxWorks
