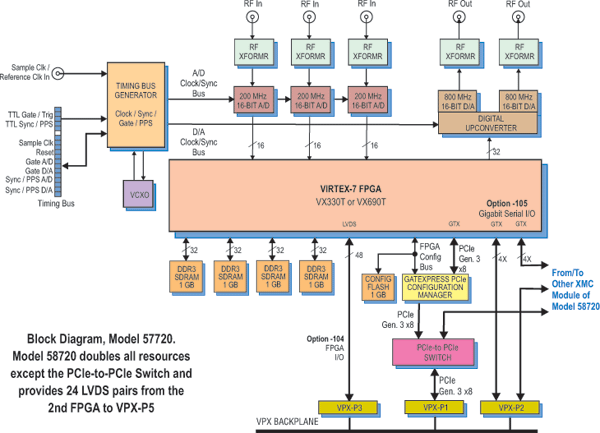

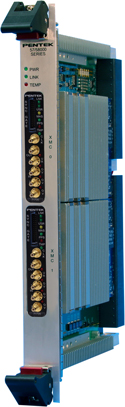

Model 58720 6-Channel 200 MHz A/D and 4-Channel 800 MHz D/A with Virtex-7 FPGA - 6U VPX

Request a Quote

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Three or six 200 MHz 16-bit A/Ds
  • One or two DUCs (Digital Upconverters)
  • Two or four 800 MHz 16-bit D/As
  • 4 or 8 GB of DDR3 SDRAM Sample clock synchronization to an external system reference
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connectionsto the Virtex-7 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available
  • Model 8264 SPARK Development System for Onyx (Xilinx Virtex-7) and Cobalt (Xilinx Virtex-6) 6U VPX Boards



Request a Quote

Model 58720

Onyx Xilinx Virtex-7



Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71720 Programmer's Reference ReadyFlow Board Support Libraries for Models 71720, 71721, and 3312 3.2 (5/9/2016)
815.71620 User's Guide Model 4995A Option 162/62x/172/721 Windows ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
816.71620 User's Guide Model 4994A Option 162/62x/172/72x Linux ReadyFlow BSP for 7162x, 7172x 4.3 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58720
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58720

Software Products - ( top )

Model
Option
Description
4953 172 GateFlow FPGA Design Kit for Pentek Modules
4994A 172 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 172 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 172 ReadyFlow Board Support Packages (BSPs) for VxWorks

Literature - ( top )

Brochure
Catalog
Handbook
Industry Article
