Home > Products > Model 74131

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 74131. Please login or register to manage your profile.

Model 74131 16-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports two Xilinx Kintex UltraScale FPGAs
  • Sixteen 250 MHz 16-bit A/Ds
  • Sixteen multiband DDCs (digital downconverters)
  • 10 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized versions available

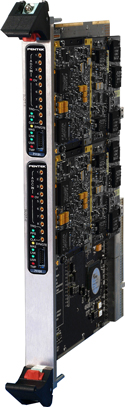

Model 74131

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

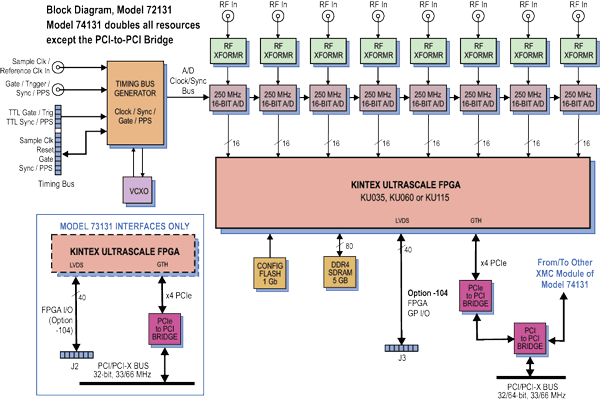

Model 74131 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71131 Operating Manual Model 71131 8-Channel 250 MHz A/D Jade Family XMC Module 1.4 (3/27/2018)
822.71131 Release Note Model 71131 FDK Revision Histories 4.0 (11/8/2023)
