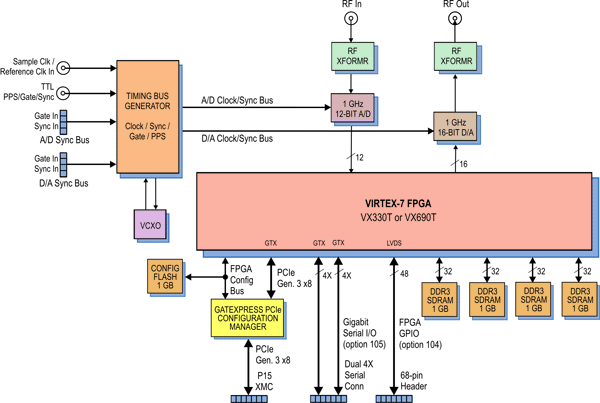

Request a Quote Block Diagram Datasheet Manuals Software Development Systems Literature Life Cycle Management Ordering & Warranty Catalogs |
|
|
Hardware and Software Manuals - ( top )
Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
Part No.
|
Type
|
Description
|
Revision/Date
|
800.71730 | Operating Manual | Model 71730 1-Ch 1 GHz A/D and 1-ch 1-GHz D/A Onyx Family XMC Module | 1.12 (11/10/2015) |
800.78062 | Addendum | Model 78xxx Option 251 Addendum | 1.0 (5/26/2015) |
800.78071 | Addendum | Model 7807 Option 110 Addendum | 0.1 (5/1/2015) |
800.78730 | Installation Guide | Model 78730 1-Ch 1 GHz A/D and 1-ch 1-GHz D/A Onyx Family PCIe Board | 2.4 (11/9/2015) |
801.71730 | Programmer's Reference | ReadyFlow Board Support Libraries for Model 71730 | 3.0 (4/6/2016) |
809.7x730 | Supplemental Manual | Vendor Data Sheets for Model 7x730 Series Operating Manuals | 1.1 (4/9/2014) |
815.71630 | User's Guide | Model 4995A Option 163/173 Windows ReadyFlow BSP for Models 71630, 71730 | 4.1A (10/9/2017) |
816.71630 | User's Guide | Model 4994A Option 163/173 Linux ReadyFlow BSP for Models 71630 and 71730 | 4.0 (4/5/2016) |
820.78730 | User's Guide | Getting Started Guide for Model 78730 | 2.1 (4/26/2016) |
Contact Pentek For Manual | Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 78730 | ||
Contact Pentek For Manual | Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 78730 |
Software Products - ( top )
Model
|
Option
|
Description
|
4953 | 173 | GateFlow FPGA Design Kit for Pentek Modules |
4994A | 173 | ReadyFlow Board Support Packages (BSPs) for Linux |
4995A | 173 | ReadyFlow Board Support Packages (BSPs) for Windows |
4996A | 173 | ReadyFlow Board Support Packages (BSPs) for VxWorks |
