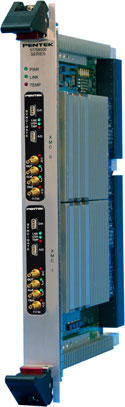

Model 58730 2-Ch 1 GHz A/D and D/A with Virtex-7 FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • One or two 1 GHz 12-bit A/D
  • One or two 1 GHz 16-bit D/A
  • 4 or 8 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Dual-┬ÁSync clock/sync bus for multiboard synchronization
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 58730

Onyx Xilinx Virtex-7

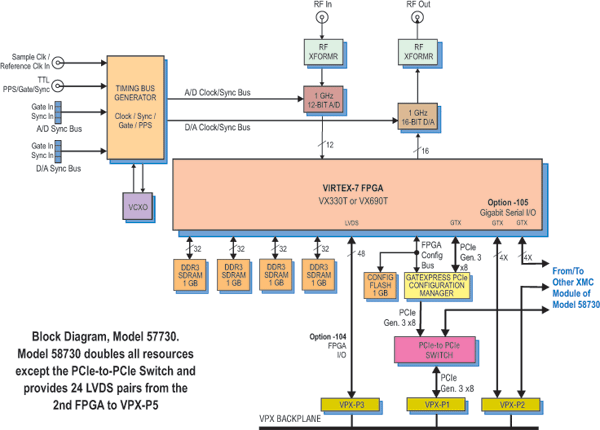

Model 58730 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at sales@pentek.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
801.71730 Programmer's Reference ReadyFlow Board Support Libraries for Model 71730 3.0 (5/9/2016)
815.71630 User's Guide Model 4995A Option 163/173 Windows ReadyFlow BSP for Models 71630, 71730 4.1A (10/9/2017)
816.71630 User's Guide Model 4994A Option 163/173 Linux ReadyFlow BSP for Models 71630 and 71730 4.0 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58730
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58730

Software Products - ( top )

Model
Option
Description
4953 173 GateFlow FPGA Design Kit for Pentek Modules
4994A 173 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 173 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 173 ReadyFlow Board Support Packages (BSPs) for VxWorks
