Model 73730 1 GHz A/D and D/A with Virtex-7 FPGA - 3U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCI/PCI-X bus
  • One 1 GHz 12-bit A/D
  • One 1 GHz 16-bit D/A
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • Dual uSync clock/sync for multimodule synchronization
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O



Model 73730

Onyx Xilinx Virtex-7

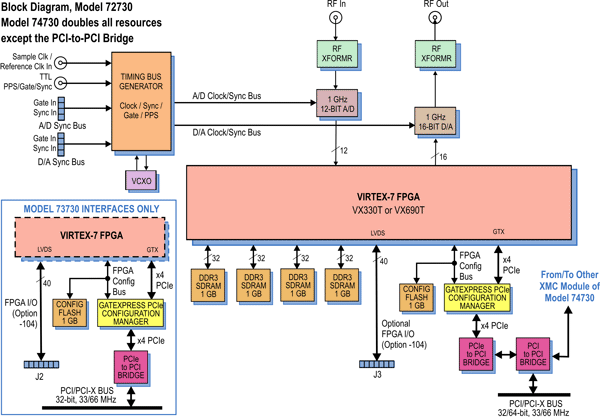

Model 73730 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71730 Operating Manual Model 71730 1-Ch 1 GHz A/D and 1-ch 1-GHz D/A Onyx Family XMC Module 1.12 (11/10/2015)
801.71730 Programmer's Reference ReadyFlow Board Support Libraries for Model 71730 3.0 (5/9/2016)
809.7x730 Supplemental Manual Vendor Data Sheets for Model 7x730 Series Operating Manuals 1.1 (4/9/2014)
815.71630 User's Guide Model 4995A Option 163/173 Windows ReadyFlow BSP for Models 71630, 71730 4.1A (10/9/2017)
816.71630 User's Guide Model 4994A Option 163/173 Linux ReadyFlow BSP for Models 71630 and 71730 4.0 (5/9/2016)
