Home > Products > Model 78641 Printer Friendly Version

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 78641.
Please login or register to manage your profile.

Model 78641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • View product video
  • Ideal radar and software radio interface solution
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • Programmable one- or two- channel DDC (Digital Downconverter
  • 2 GB of DDR3 SDRAM
  • Sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface, up to x8
  • Clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O



Request a Quote

Model 78641

Cobalt Xilinx Virtex-6

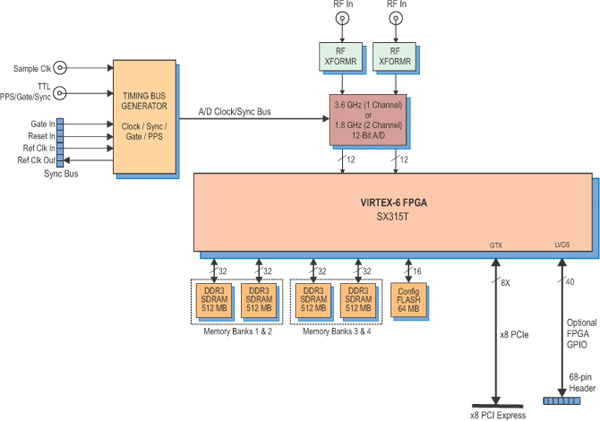

Model 78641 Block Diagram



Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71640 Operating Manual Model 71640 2-Ch 1.5 GHz (1-ch 3 GHz) A/D Cobalt Family XMC Module 3.9 (6/9/2016)
800.71641 Addendum Model 71641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC 1.5 (9/28/2015)
800.78062 Addendum Model 78xxx Option 251 Addendum 1.0 (5/26/2015)
800.78641 Installation Guide Model 78641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDCs Cobalt Family PCIe board 1.7 (6/10/2016)
801.71640 Programmer's Reference ReadyFlow Board Support Libraries for Models 71640 and 71641 3.0 (9/23/2015)
809.7x640 Supplemental Manual Vendor Data Sheets for Model 7x640 Series Operating Manuals 1.1 (6/1/2012)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1 (10/7/2015)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
820.78641 User's Guide Getting Started Guide for Model 78641 1.1 (11/27/2013)
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 78641

Software Products - ( top )

Model
Option
Description
4994A 641 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 641 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 641 ReadyFlow Board Support Packages (BSPs) for VxWorks
