Model 7892 High-Speed System Synchronization and Distribution Amplifier - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Development Systems

Supported Products

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Synchronizes up to four high-speed Cobalt or Onyx I/O modules
  • Synchronizes sampling and data acquisition for multichannel systems
  • Synchronizes gating and triggering functions
  • Clock rates up to 1.8 GHz
  • Front panel MMCX connectors for input signals
  • Front panel µSync connectors compatible with a range of Pentek Cobalt and Onyx modules



Request a Quote

Model 7892

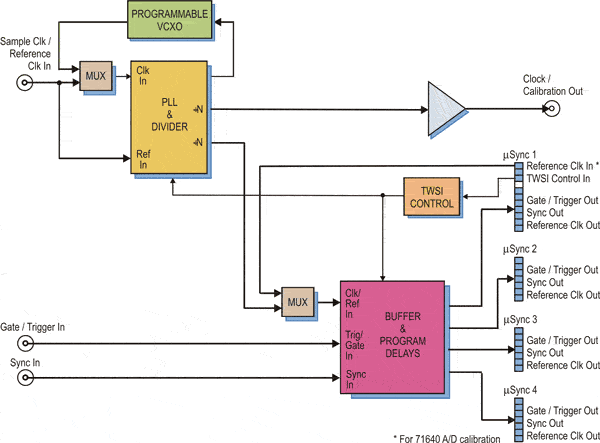

Model 7892 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71920 Operating Manual Model 7192 High-Speed System Synchronization and Distribution Board 4.1 (11/24/2020)
800.78920 Installation Guide Model 7892 High-Speed System Synchronization and Distribution PCIe Board 2.0 (11/25/2020)
801.71920 Programmer's Reference ReadyFlow Board Support Libraries for Models 7192 and 9192 2.0 (9/29/2015)
815.71920 User's Guide Model 4995A Option 192 Windows ReadyFlow BSP for Models 7192 and 9192 3.0 (9/13/2018)
816.71920 User's Guide Model 4994A Option 192 Linux ReadyFlow BSP for Models 7192 and 9192 2.0 (9/12/2018)

Supported Products - ( top )

Jade Xilinx Kintex UltraScale FPGA Family
Model
Description
Model 78841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - PCIe
Model 78141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - PCIe
Model 78132 8-Channel 250 MHz A/D with Multiband DDC, Kintex UltraScale FPGA - PCIe
Model 78131 8-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - PCIe
Cobalt Xilinx Virtex-6 FPGA Family
Model
Description
Model 78671 4-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - PCIe
Model 78670 4-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - PCIe
Model 78641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - PCIe
Model 78640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - PCIe
Model 78630 1 GHz A/D and D/A with Virtex-6 FPGA - PCIe
Onyx Xilinx Virtex-7 FPGA Family
Model
Description
Model 78741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - PCIe
Model 78730 1 GHz A/D and D/A with Virtex-7 FPGA - PCIe
FlexorSet FMC Family
Model
Description
Model 7070-324 OnyxFX FlexorSet 4-Ch 16-bit: 500 MHz A/D & 2 GHz D/A - PCIe
Model 7070-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - PCIe
Model 7070-317 OnyxFX FlexorSet 8-Channel 250 MHz A/D with DDCs - PCIe
Model 7070-316 OnyxFX FlexorSet 8-Channel 250 MHz A/D - PCIe
Model 7070-313 OnyxFX FlexorSet 4-Ch. 250 MHz A/D w/DDCs, 2-Ch. 800 MHz D/A w/DUC, Int - PCIe
Model 7070-312 OnyxFX FlexorSet 4-Ch. 250 MHz A/D, 2-Ch. 800 MHz D/A - PCIe
