Model 7891 Programmable Multifrequency Clock Synthesizer - PCIe x8

Request a Quote

Block Diagram

Data Sheet

Manuals

Software

Development System

Literature

Life Cycle Management


  • Simultaneous synthesis of up to 5 different clocks
  • Eight SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -105 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 100 MHz
  • Four programmable VCXOs with 32-bit tuning resolution
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 700 MHz
  • Control and status via PCIe bus interface



Request a Quote

Model 7891

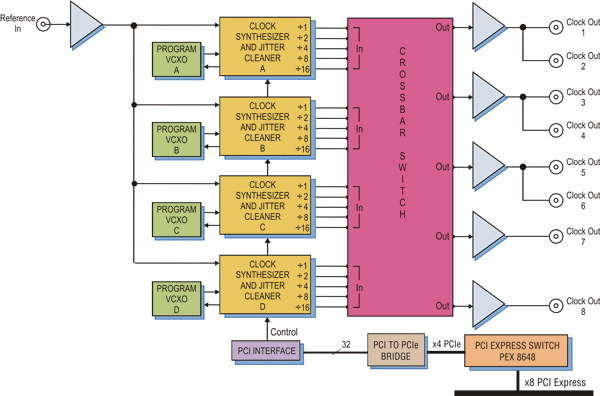

Model 7891 Block Diagram
