Model 71751 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - XMC

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • Two 500 MHz 12-bit A/Ds
  • Two multiband DDCs (digital downconverters)
  • Two 800 MHz 16-bit D/As
  • One DUC (digital upconverter)
  • Multiboard programmable beamformer
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Also available in 3U VPX, 3U & 6U cPCI & PCIe



Request a Quote

Model 71751

Onyx Xilinx Virtex-7

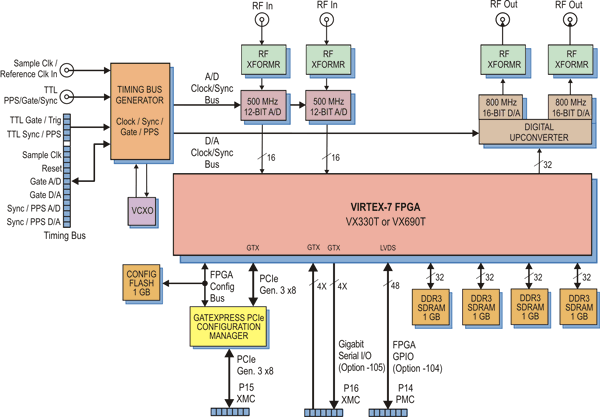

Model 71751 Block Diagram



Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71751 Operating Manual Model 71751 2-Ch A/D w/ 2 DDCs, 2-Ch D/A w/Interp, Onyx Family XMC Module 1.8 (6/28/2016)
801.71750 Programmer's Reference ReadyFlow Board Support Libraries for 71751, 5973/7070-320, 5973/7070-324 3.2 (9/19/2016)
809.7x751 Supplemental Manual Vendor Data Sheets for Model 7x751 Series Operating Manuals 1.1 (5/15/2014)
815.71650 User's Guide Model 4995A Option 165/651/751 Windows ReadyFlow BSP for 7165x, 71751 4.1 (4/22/2016)
816.71650 User's Guide Model 4994A Option 165/651/751 Linux ReadyFlow BSP for 71650, 71651, 71751 4.1 (10/28/2015)
820.71751 User's Guide Getting Started Guide for Model 71751 2.2 (4/19/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 71751
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 71751

Software Products - ( top )

Model
Option
Description
4953 751 GateFlow FPGA Design Kit for Pentek Modules
4994A 751 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 751 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 751 ReadyFlow Board Support Packages (BSPs) for VxWorks
