Model 5392 High-Speed System Synchronization and Distribution Amplifier - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Development Systems

Supported Products

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Synchronizes up to four high-speed Cobalt or Onyx I/O modules
  • Synchronizes sampling and data acquisition for multichannel systems
  • Synchronizes gating and triggering functions
  • Clock rates up to 1.8 GHz
  • Front panel MMCX connectors for input signals
  • Front panel ┬ÁSync connectors compatible with a range of Pentek Cobalt and Onyx modules



Request a Quote

Model 5392

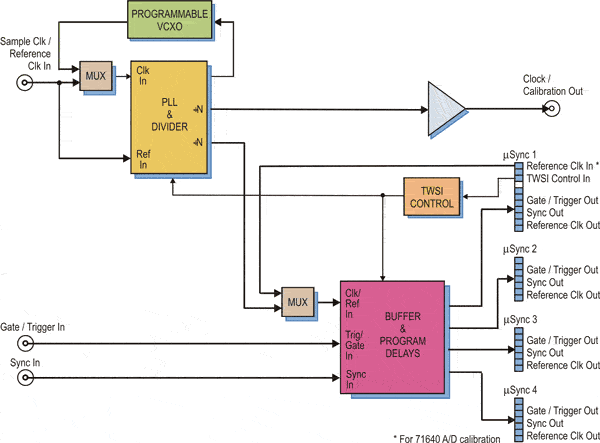

Model 5392 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.53920 Installation Guide Model 5392 System Synchronization VPX board 1.0 (9/13/2013)
800.71920 Operating Manual Model 7192 High-Speed System Synchronization and Distribution Board 3.1 (5/19/2017)
820.53920 User's Guide Getting Started Guide for Model 53920 1.0 (9/13/2013)

Supported Products - ( top )

Jade Xilinx Kintex UltraScale FPGA Family
Model
Description
Model 53841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 3U VPX
Model 53131 8-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - 3U VPX
Cobalt Xilinx Virtex-6 FPGA Family
Model
Description
Model 53671 4-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - 3U VPX
Model 53670 4-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - 3U VPX
Model 53641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX
Model 53640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - 3U VPX
Model 53630 1 GHz A/D and D/A with Virtex-6 FPGA - 3U VPX
Onyx Xilinx Virtex-7 FPGA Family
Model
Description
Model 53741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX
Model 53730 1 GHz A/D and D/A with Virtex-7 FPGA - 3U VPX
FlexorSet FMC Family
Model
Description
Model 5973-324 FMC FlexorSet 4-Ch 16-bit: 500 MHz A/D & 2 GHz D/A, Virtex-7 FPGA - 3U VPX
Model 5973-320 FMC FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A with Virtex-7 - 3U VPX
