Home > What's New > Pentek Announces the Series 53XX Software Radio 3U VPX

Spring 2010 Vol. 19, No. 1

Pentek Announces the Series 53XX Software Radio 3U VPX

14 New Products, designed for communications, radar and signal intelligence applications, deliver extreme performance.


Model 5350: Quad 200 MHz, 16-bit A/Ds

Features:

  • 3U VPX with built-in support for PCIe
  • Four 200 MHz, 16-bit A/Ds
  • Two Xilinx Virtex-5 FPGAs
  • 1.5 GB DDR2 SDRAM
  • LVPECL clock/sync bus for multiboard synchronization
  • Commercial and rugged versions
  • 32 pairs of LVDS connections to the Virtex-5 FPGAs for custom I/O
  • Product Information, click here



Model 5351: 256-Channel DDCs, four 200 MHz A/Ds

Features:

  • 3U VPX with built-in support for PCIe
  • 256 channels of DDCs in four banks
  • Independent tuning for each channel
  • DDC decimation from 128 to 1024
  • User-programmable 18-bit FIR filter coefficients
  • Four 200 MHz, 16-bit A/Ds
  • LVPECL clock/sync bus for multiboard synchronization
  • Product Information, click here



Model 5356: Dual 400 MHz A/Ds and 800 MHz D/As

Features:

  • 3U VPX with built-in support for PCIe
  • Two 400 MHz, 14-bit A/Ds
  • One DUC (Upconverter)
  • Two 800 MHz, 16-bit D/As
  • Independent A/D and D/A clocks
  • Two Xilinx Virtex-5 FPGAs
  • 1 GB DDR2 SDRAM
  • LVPECL clock/sync bus for multiboard synchronization
  • Product Information, click here



Model 5358: Dual 500 MHz A/Ds and 800 MHz D/As

Features:

  • 3U VPX with built-in support for PCIe
  • Two 500 MHz, 12-bit A/Ds
  • One DUC (Upconverter)
  • Two 800 MHz, 16-bit D/As
  • Independent A/D and D/A clocks
  • Two Xilinx Virtex-5 FPGAs
  • 1 GB DDR2 SDRAM
  • LVPECL clock/sync bus for multiboard synchronization
  • Product Information, click here

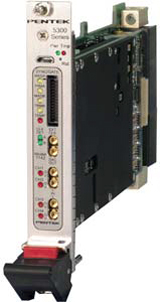

Model 5342: Multichannel Transceiver

Features:

  • 3U VPX with built-in support for PCIe
  • Four 125 MHz, 14-bit A/Ds
  • One DUC (Upconverter)
  • One 500 MHz, 16-bit D/A
  • Two Xilinx Virtex-4 FPGAs
  • 768 MB DDR2 SDRAM
  • LVDS clock/sync bus for multiboard synchronization
  • Optional installed DDC cores
  • Product Information, click here



Model 5342-428: 4 Multiband DDCs and Interpolator

Features:

  • 3U VPX with built-in support for PCIe
  • Four 125 MHz, 14-bit A/Ds
  • Four multiband DDCs and one interpolation filter
  • Decimation range from 2 to 65,536
  • Interpolation range from 2 to 32,768
  • User-programmable FIR filter coefficients
  • LVDS clock/sync bus for multiboard synchronization
  • Product Information, click here

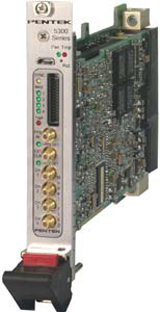

Model 5352: 32-Channel DDCs, four 200 MHz A/Ds

Features:

  • 3U VPX with built-in support for PCIe
  • 32 channels of DDCs in four banks
  • Independent tuning for each channel
  • DDC decimation from 16 to 8192
  • User-programmable 18-bit FIR filter coefficients
  • Power meters and threshold detectors
  • LVPECL clock/sync bus for multiboard synchronization
  • Product Information, click here



Model 5353: Quad DDCs, 200 MHz A/Ds, Beamformer

Features:

  • 3U VPX with built-in support for PCIe
  • Four 200 MHz, 16-bit A/Ds
  • Two or four channels of DDCs
  • DDC decimation from 2 to 256 or 2 to 65536
  • Independent 32-bit DDC tuning
  • Power meters, threshold detectors and beamforming functions
  • LVPECL clock/sync bus for multiboard synchronization
  • Product Information, click here

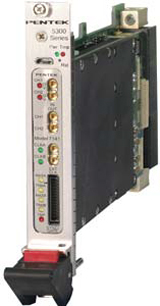

Model 5341: Dual Multiband Transceiver

Features:

  • 3U VPX with built-in support for PCIe
  • Two 125 MHz, 14-bit A/Ds
  • Four-channel DDC (Downconverter)
  • One DUC (Upconverter)
  • Two 500 MHz, 16-bit D/As
  • Xilinx Virtex-II Pro FPGA
  • 512 MB DDR SDRAM
  • LVDS clock/sync bus for multiboard synchronization
  • Product Information, click here

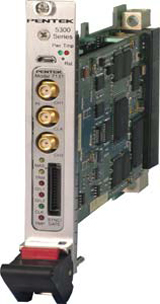

Model 5331: 16-Channel Multiband Receiver

Features:

  • 3U VPX with built-in support for PCIe
  • Two 105 MHz, 14-bit A/Ds
  • 16 channels of multiband DDCs
  • User-configurableXilinx Virtex-II FPGA
  • 250 MHz input bandwdith
  • 5 kHz to 10 MHz output bandwidth for 100 MHz sampling frequency
  • LVDS clock/sync bus for multiboard synchronization
  • Product Information, click here



Also available: Model 5341-420 with 4 Wideband DDCs


Features:


Also available: Model 5341-430 with 256-Channel DDCs


Features:





Follow VPX updates, click here.
