Model 71610 LVDS Digital I/O with Virtex-6 FPGA - XMC

Request a Quote

Block Diagram




Development Systems


Life Cycle Management

Ordering & Warranty


  • 32 bits of LVDS digital I/O
  • One LVDS clock
  • One LVDS data valid
  • One LVDS data suspend
  • Supports LXT and SXT Virtex-6 FPGAs
  • DMA controller moves data to and from system memory
  • Up to 2 GB of DDR3 SDRAM
  • PCI Express Interface
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O to the carrier board
  • Model 8266 SPARK Development System for Quartz™ (Xilinx Zynq UltraScale+ RFSoC), Jade™ (Xilinx Kintex UltraScale), Flexor® (FMC (FPGA Mezzanine Card)), JadeFX™ (Xilinx Kintex UltraScale with FMC), Onyx® (Xilinx Virtex-7), OnyxFX™ (Xilinx Virtex-7 with FMC) and Cobalt® (Xilinx Virtex-7) family PCIe Boards
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 71810


Request a Quote

Model 71610

Cobalt Xilinx Virtex-6

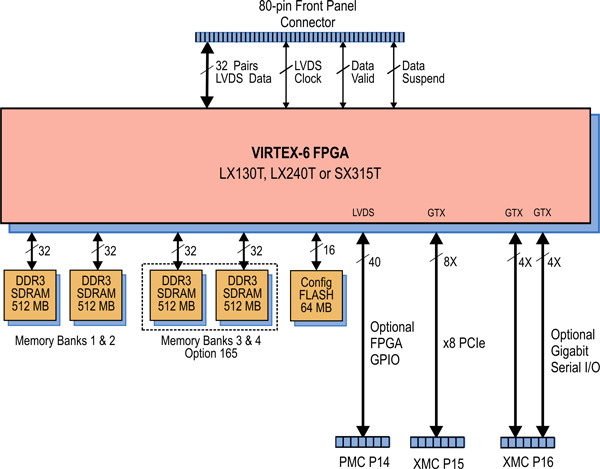

Model 71610 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

John Eklund
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71610 Operating Manual Model 71610 Digital I/O Cobalt Family XMC Module 1.7 (7/2/2015)
801.71610 Programmer's Reference ReadyFlow Board Support Libraries for Model 71610 1.1 (6/22/2016)
809.7x610 Supplemental Manual Vendor Data Sheets for Model 7x610 Series Operating Manuals 1.0 (8/22/2013)
815.71610 User's Guide Model 4995A Option 161 Windows ReadyFlow BSP for Models 71610 1.0A (10/9/2017)
816.71610 User's Guide Model 4994A Option 610 Linux ReadyFlow BSP for Model 71610 1.0 (6/23/2016)
820.71610 User's Guide Getting Started Guide for Model 71610 1.2 (9/12/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 71610
Contact Pentek
For Manual
Model 4994A ReadyFlow Board Support Packages (BSPs) for Linux for Model 71610
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 71610

Software Products - ( top )

4953 610 GateFlow FPGA Design Kit for Pentek Modules
4994A 610 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 610 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 610 ReadyFlow Board Support Packages (BSPs) for VxWorks
