Model 52610 LVDS Digital I/O with Virtex-6 FPGA - 3U VPX

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • 32 bits of LVDS digital I/O
  • One LVDS clock
  • One LVDS data valid
  • One LVDS data suspend
  • Supports LXT and SXT Virtex-6 FPGAs
  • DMA controller moves data to and from system memory
  • Up to 2 GB of DDR3 SDRAM
  • PCI Express Interface
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O to the carrier board
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Model 52610

Cobalt Xilinx Virtex-6

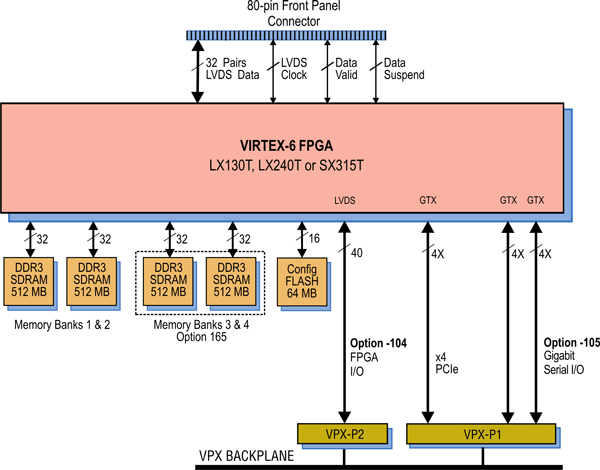

Model 52610 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52610 Installation Guide Model 52610 Digital I/O Cobalt Family VPX Module 1.6 (6/18/2015)
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71610 Operating Manual Model 71610 Digital I/O Cobalt Family XMC Module 1.7 (7/2/2015)
801.71610 Programmer's Reference ReadyFlow Board Support Libraries for Model 71610 1.1 (6/20/2016)
809.7x610 Supplemental Manual Vendor Data Sheets for Model 7x610 Series Operating Manuals 1.0 (8/20/2013)
815.71610 User's Guide Model 4995A Option 161 Windows ReadyFlow BSP for Models 71610 1.0A (10/9/2017)
816.71610 User's Guide Model 4994A Option 610 Linux ReadyFlow BSP for Model 71610 1.0 (6/21/2016)
820.52610 User's Guide Getting Started Guide for Model 52610 2.6 (6/16/2015)
