Model 7070 OnyxFX Virtex-7 Processor and FMC Carrier - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • VITA-57.1 FMC site offers access to a wide range of possible I/O
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2 and 3) interface up to x8
  • Optional user-configurable 12X optical gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Commercial and extended-temperature versions available
  • Also available as a FlexorSet; Carrier+FMC:
    • Model 7070-324 OnyxFX FlexorSet 4-Ch 16-bit: 500 MHz A/D & 2 GHz D/A - PCIe
    • Model 7070-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - PCIe
    • Model 7070-317 OnyxFX FlexorSet 8-Channel 250 MHz A/D with DDCs - PCIe
    • Model 7070-316 OnyxFX FlexorSet 8-Channel 250 MHz A/D - PCIe
    • Model 7070-313 OnyxFX FlexorSet 4-Ch. 250 MHz A/D w/DDCs, 2-Ch. 800 MHz D/A w/DUC, Int - PCIe
    • Model 7070-312 OnyxFX FlexorSet 4-Ch. 250 MHz A/D, 2-Ch. 800 MHz D/A - PCIe
  • See comparable JadeFX Xilinx Kintex UltraScale FPGA Family:
    • Model 5983 JadeFX Kintex UltraScale Processor and FMC Carrier - 3U VPX



Request a Quote

Model 7070

OnyxFX FMC Carriers

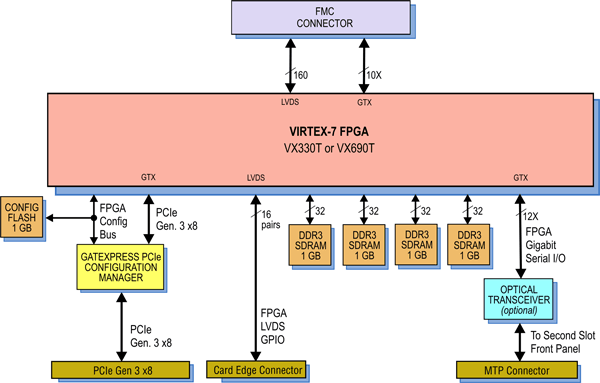

Model 7070 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.33125 Operating Manual Model 7070 Option 312 Operating Manual 1.6 (10/24/2017)
800.33165 Operating Manual Model 7070 Option 316 Operating Manual 1.8 (10/24/2017)
800.33205 Operating Manual Model 7070 Option 320 Operating Manual 1.5 (9/13/2018)
800.33245 Operating Manual Model 7070 Option 324 Operating Manual 1.11 (2/13/2018)
800.70700 Operating Manual Model 7070 Operating Manual 1.2 (8/15/2018)
800.78062 Addendum Model 78xxx Option 251 Addendum 1.0 (5/26/2015)
809.33165 Supplemental Manual Vendor Data Sheets for Model 7070 Option 316 Operating Manual 1.1 (8/4/2015)
809.33205 Supplemental Manual Vendor Datasheets for Model 7070 Option 320 Operating Manual 1.1 (4/29/2016)
809.70700 Supplemental Manual Vendor Datasheets for Model 7070 Operating Manual 0.1 (3/8/2016)
820.70700 User's Guide Getting Started Guide for Model 7070 0.1 (3/18/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 7070

Software Products - ( top )

Model
Option
Description
4953 707 GateFlow FPGA Design Kit for Pentek Modules
