Model 7070-312 OnyxFX FlexorSet 4-Ch. 250 MHz A/D, 2-Ch. 800 MHz D/A - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • Four 250 MHz 16-bit A/Ds
  • One digital upconverter
  • Two 800 MHz 16-bit D/As
  • 4 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • PCI Express (Gen. 1, 2 and 3) interface up to x8
  • Optional optical Interface for backplane gigabit serial interboard communication
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Also available as Model 5973-312
  • See comparable JadeFX Xilinx Kintex UltraScale FPGA Family:
    • Model 5983 JadeFX Kintex UltraScale Processor and FMC Carrier - 3U VPX



Request a Quote

Model 7070-312

OnyxFX FlexorSet Carrier+FMC

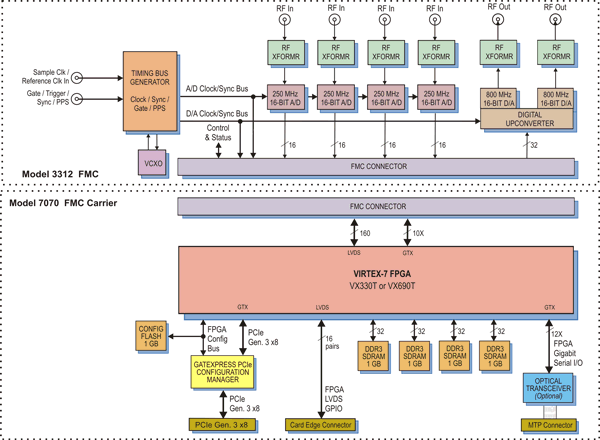

Model 7070-312 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.33125 Operating Manual Model 7070 Option 312 Operating Manual 1.6 (10/24/2017)
800.78062 Addendum Model 78xxx Option 251 Addendum 1.0 (5/26/2015)
801.71720 Programmer's Reference ReadyFlow Board Support Libraries for Models 71720, 71721, and 3312 3.2 (4/13/2016)
809.33121 Supplemental Manual Vendor Data Sheets for Model 5973 Option 312 Operating Manual 1.1 (4/23/2015)
809.33125 Supplemental Manual Vendor Data Sheets for Model 7070 Option 312 Operating Manual 1.0 (9/10/2015)
815.33120 User's Guide Model 4995A Option 312 Windows ReadyFlow BSP for 3312, 5973-312, 7070-312 2.0 (4/18/2017)
816.33120 User's Guide Model 4994A Option 312/313 Linux ReadyFlow BSP 3.0 (4/4/2017)
820.33125 User's Guide Getting Started Guide for Model 7070 Option 312 1.1 (3/17/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 7070-312

Software Products - ( top )

Model
Option
Description
4953 707 GateFlow FPGA Design Kit for Pentek Modules
