Model 3320 Flexor 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - FMC

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Sold as a FlexorSet; Carrier+FMC:
    • Model 7070-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - PCIe
    • Model 5983-320 JadeFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - 3U VPX
    • Model 5973-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - 3U VPX
  • Two 3.0 GHz A/Ds
  • Two 2.8 GHz D/As
  • Two digital upconverters
  • Sample clock synchronization to an external system reference
  • VITA 57 FMC compatible
  • Complete radar or software radio interface solution when combined with the Model 5973 3U OpenVPX or Model 7070 PCIe Virtex-7 FMC carrier
  • Ruggedized and conduction-cooled versions available



Model 3320

Flexor FMC Modules

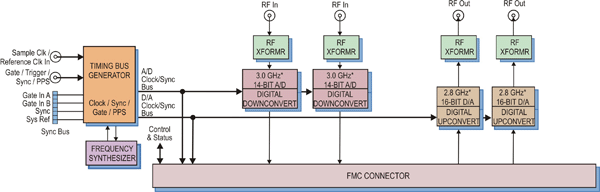

Model 3320 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.33201 Operating Manual Model 5973 Option 320 Operating Manual 2.1 (7/24/2019)
800.33205 Operating Manual Model 7070 Option 320 Operating Manual 1.5 (9/13/2018)
801.71750 Programmer's Reference ReadyFlow Board Support Libraries for 71751, 5973/7070-320, 5973/7070-324 3.2 (9/19/2016)
809.33201 Supplemental Manual Vendor Datasheets for Model 5973 Option 320 Operating Manual 1.1 (1/4/2017)
809.33205 Supplemental Manual Vendor Datasheets for Model 7070 Option 320 Operating Manual 1.1 (4/29/2016)
815.33200 User's Guide Model 4995A Option 320 Windows ReadyFlow BSP for 3320, 5973/7070-320 3.0 (9/13/2018)
816.33200 User's Guide Model 4994A Option 320 Linux ReadyFlow BSP for Models 3320, 5973/7070-320 3.0 (9/12/2018)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 3320
Contact Pentek
For Manual
Model 4995A ReadyFlow Board Support Packages (BSPs) for Windows for Model 3320

Software Products - ( top )

Model
Option
Description
4953 320 GateFlow FPGA Design Kit for Pentek Modules
4994A 320 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 320 ReadyFlow Board Support Packages (BSPs) for Windows
