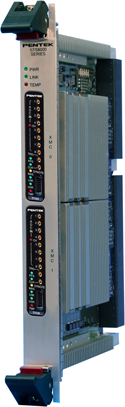

Model 58131 16-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports two Xilinx Kintex UltraScale FPGAs
  • Sixteen 250 MHz 16-bit A/Ds
  • Sixteen multiband DDCs (digital downconverters)
  • 10 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 58131

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale


Model 58131 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71131 Operating Manual Model 71131 8-Channel 250 MHz A/D Jade Family XMC Module 1.4 (3/27/2018)
822.71131 Release Note Model 71131 FDK Revision Histories 4.0 (11/8/2023)

Software Products - ( top )

Model
Option
Description
4811 131 Navigator FDK (FPGA Design Kit)
4814 131 Navigator BSP (Board Support Package) for Linux
4815 131 Navigator BSP (Board Support Package) for Windows
