Model 78861 4-Channel 200 MHz A/D with DDC, Kintex UltraScale FPGA - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Complete radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs (digital downconverters)
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 78761
  • See comparable Cobalt Xilinx Virtex-6 FPGA Module: Model 78661



Request a Quote

Model 78861

Jade Xilinx UltraScale

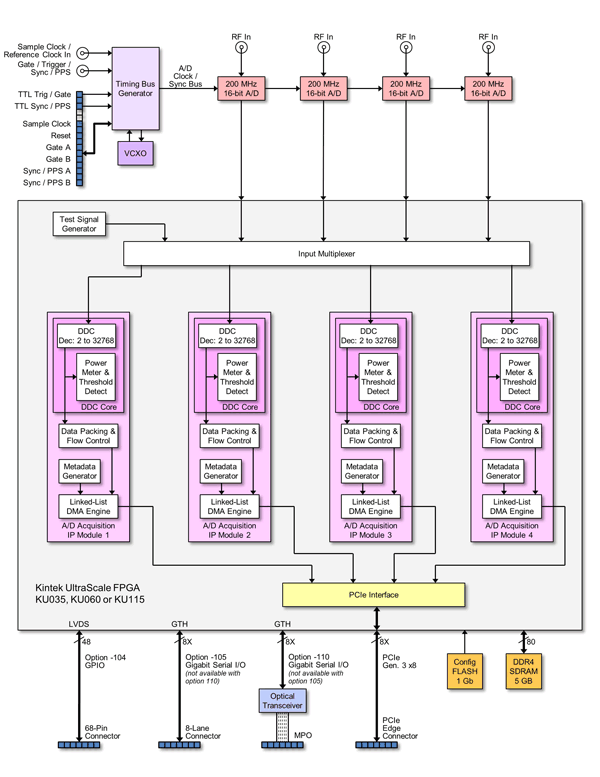

Model 78861 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Windows and Linux User's Guide 2.1 (10/5/2017)
800.71861 Operating Manual Model 71861 4-Channel A/D Jade Family XMC Module 1.2 (10/9/2017)
800.78071 Addendum Model 7807 Option 110 Addendum 0.1 (5/1/2015)
800.78861 Installation Guide Model 78861 4-Channel A/D, with four DDCs, Jade Family PCIe Board 1.1 (5/15/2017)
809.71861 Supplemental Manual Vendor Data Sheets for Model 71861 Series Operating Manuals 1.0 (12/6/2016)
820.78861 User's Guide Getting Started Guide for Model 78861 1.3 (10/9/2017)
821.78861 Operating Manual User Manual Library for Model 78861 1.2 (10/9/2017)

Software Products - ( top )

Model
Option
Description
4811 861 Navigator FDK (FPGA Design Kit)
4814 861 Navigator BSP (Board Support Package) for Linux
4815 861 Navigator BSP (Board Support Package) for Windows
