Model 7220 2 Channel Analog RF Wideband Downconverter - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Accepts RF signals from 400 MHz to 4000 MHz
  • Accepts RF input levels from -60 dBm to -20 dBm
  • Baseband IF output with up to 390 MHz bandwidth
  • Internal OCXO or external 10 MHz frequency reference

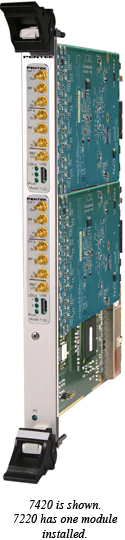

Model 7220

Bandit Analog Receiver

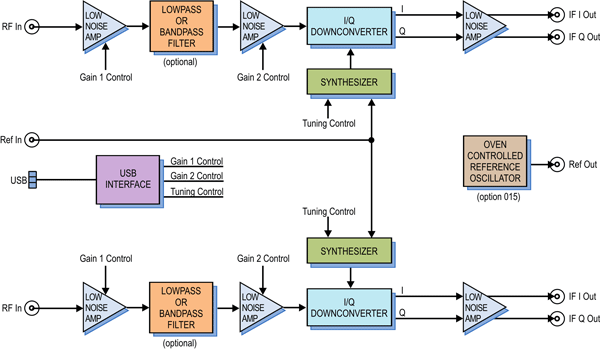

Model 7220 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.72200 Operating Manual Model 7220 Bandit Family 2-Channel Analog RF I/Q Demodulator 6U cPCI Board 0.1 (11/15/2013)
801.71200 Programmer's Reference ReadyFlow Board Support Libraries for Model 7120 1.0 (6/4/2014)
815.71200 User's Guide Model 4995A Option 120 Windows ReadyFlow BSP for Model 7120 1.1 (10/13/2014)
816.71200 User's Guide Model 4994A Option 120 Linux ReadyFlow BSP for Model 7120 1.0 (10/9/2014)
