Model 71662 4-Channel 200 MHz A/D with 32-Channel DDC, Virtex-6 FPGA - XMC

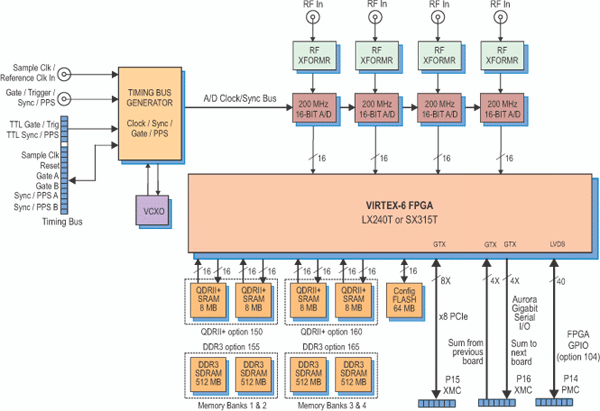

Block Diagram Data Sheet Manuals Software Literature Life Cycle Management

Limited Time: $2,000 Discount for Cobalt Virtex-6 Bundle View product video Complete radar and software radio interface solution Supports Xilinx Virtex-6 LXT and SXT FPGAs Four 200 MHz 16-bit A/Ds Four multiband DDCs Up to 2 GB of DDR3 SDRAM Sample clock synchronization to an external system reference Front panel clock/sync bus for multimodule synchronization PCI Express (Gen. 1 & 2) interface up to x8 Optional user-configurable serial gigabit interfaces Optional LVDS connections to the Virtex-6 FPGA for custom I/O Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe Available in the following form factors: Model 53662 - VPX 3U Model 72662 - cPCI 6U Model 73662 - cPCI 3U Model 74662 - cPCI 6U Model 78662 - PCIe Please refer to the product datasheet for Installed FPGA IP Module details
