Model 52741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Ideal radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/D
  • Programmable one- or two-channel DDC (Digital Downconverter)
  • 4 GB of DDR3 SDRAM
  • µSync clock/sync for multiboard synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x4
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 52841



Request a Quote

Model 52741

Onyx Xilinx Virtex-7

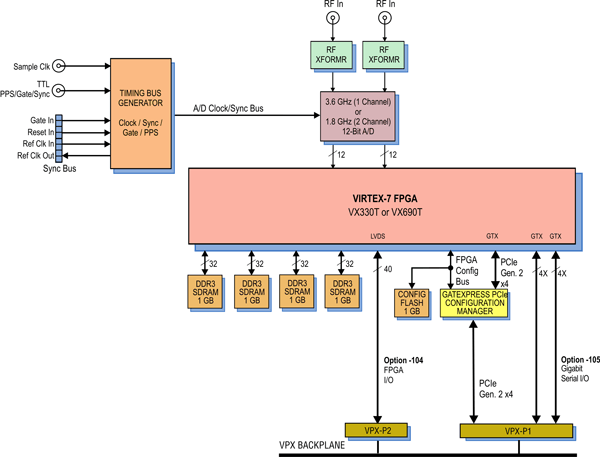

Model 52741 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52741 Installation Guide Model 52741 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC Onyx Family VPX board 2.1 (6/9/2016)
800.71741 Operating Manual Model 71741 2-Ch 1.8 GHz/1-Ch 3.6 GHz A/D w/ DDC Onyx Family XMC Module 2.8 (12/27/2017)
801.71740 Programmer's Reference ReadyFlow Board Support Libraries for Model 71741 3.0 (9/24/2015)
809.7x741 Supplemental Manual Vendor Data Sheets for Model 7x741 Series Operating Manuals 1.2 (5/15/2014)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1A (10/10/2017)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
820.52741 User's Guide Getting Started Guide for Model 52741 2.8 (1/30/2024)
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 52741

Software Products - ( top )

Model
Option
Description
4994A 741 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 741 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 741 ReadyFlow Board Support Packages (BSPs) for VxWorks
