Model 74760 8-Channel 200 MHz, 16-bit A/D with Virtex-7 FPGA - 6U cPCI

Request a Quote

Block Diagram





Life Cycle Management

Ordering & Warranty


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCI/PCI-X bus
  • Eight 200 MHz 16-bit A/Ds
  • 8 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O


Request a Quote

Model 74760

Onyx Xilinx Virtex-7

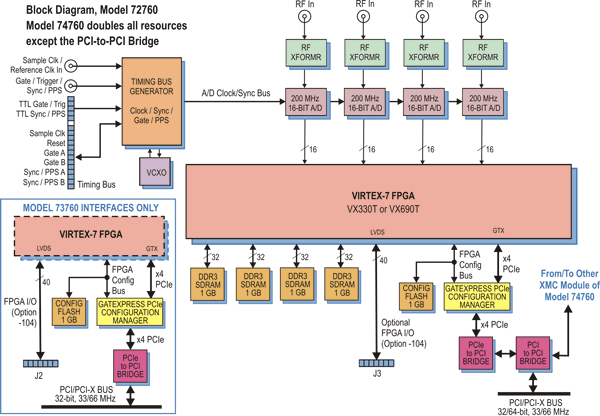

Model 74760 Block Diagram
