Model 6235-421 12-Bit A/D with Wideband Receiver Installed Core- VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram



Life Cycle Management

Ordering & Warranty


  • Two identical receiver channels include A/D, digital downconverter and a shared FPGA
  • Two low distortion 105 MHz 12-bit A/D converters
  • Wideband digital receivers with decimation range from 2 to 64
  • Output bandwidths to 40 MHz for 100 MHz sampling clock
  • Advanced Virtex-II FPGA for signal preprocessing
  • GateFlow Factory-installed Core 421, Wideband Digital Downconverter


Model 6235-421

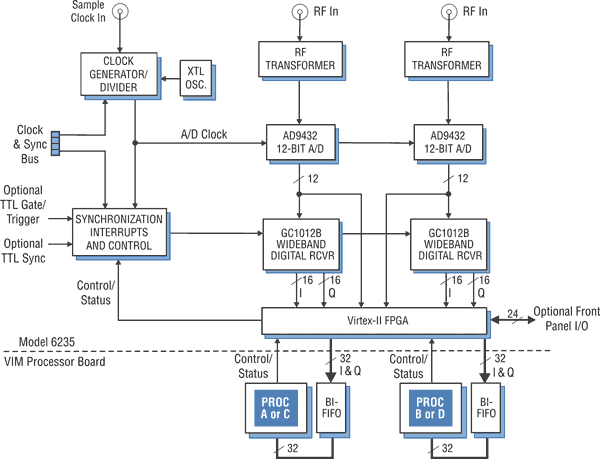

Model 6235-421 Block Diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.62351 Operating Manual Model 6235, Option 421 2-Channel Wideband Digital Receiver VIM-2 Module A (12/1/2007)
801.62350 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6235/6236 3.1 (7/2/2004)
