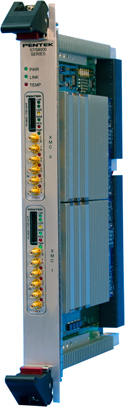

Model 58664 8-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - 6U VPX

Request a Quote

Block Diagram




Development Systems


Life Cycle Management

Ordering & Warranty


  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • PCIe output supports VITA 49.0 VITA Radio Transport (VRT) Standard
  • Eight 200 MHz 16-bit A/Ds
  • Eight multiband DDCs (digital downconverters)
  • Two multiboard programmable beamformers
  • Up to 4 GB of DDR3 SDRAM; or: 64 MB of QDRII+ SRAM
  • PCI Express (Gen. 1 & 2) interface up to x8
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available


Request a Quote

Model 58664

Cobalt Xilinx Virtex-6

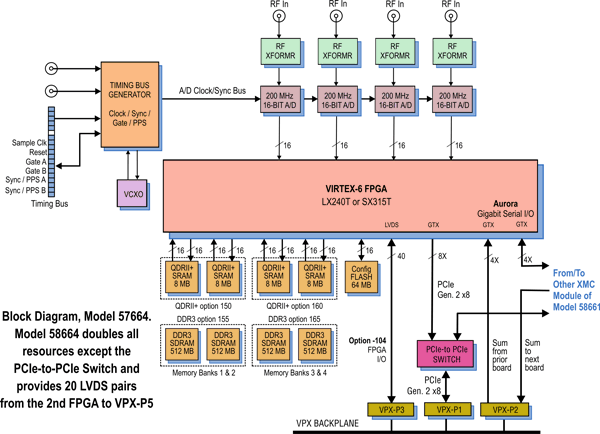

Model 58664 Block Diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 58664
Contact Pentek
For Manual
Model 4995A ReadyFlow Board Support Packages (BSPs) for Windows for Model 58664
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 58664

Software Products - ( top )

4953 664 GateFlow FPGA Design Kit for Pentek Modules
4994A 664 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 664 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 664 ReadyFlow Board Support Packages (BSPs) for VxWorks
