Model 4207 MPC8641D PowerPC and Virtex-4 FPGA I/O Proc - VME/VXS

This product is no longer available. Contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • 8-Channel Aurora Beamforming System - VXS/XMC TechCast Presentation
  • Freescale MPC8641D single or dual core PowerPC processor to 1.2 GHz
  • Xilinx Virtex-4 FX Series FPGA
  • Hosts two PMC or XMC modules
  • On-board dual gigabit Ethernet interfaces
  • Optional on-board 4-Gbit dual optical Fibre Channel controller
  • Optional dual optical gigabit serial/Fibre Channel interface
  • Up to 3 GB DDR2 SDRAM
  • Two 64-bit PCI-X buses
  • VME64x master/slave interface
  • Optional VXS interface
  • Native Serial RapidIO Interface
  • Ruggedized and conduction-cooled versions
  • Contact Pentek for PCIe options

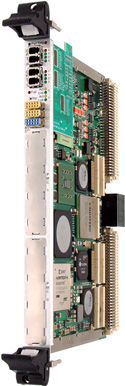

Model 4207



Model 4207 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.42070 Operating Manual Model 4207 PowerPC PMC/XMC Carrier VMEbus A.4 (1/22/2015)
803.42070 User's Guide Model 4996A Option 207, VxWorks Board Support Package for Model 4207 1.1A (1/19/2015)
806.42070 User's Guide Model 4994A Option 207 Linux BSP for Model 4207 1.0 (6/5/2012)
809.42070 Supplemental Manual Vendor Data Sheets for Model 4207 Operating Manual A (3/22/2010)
