Model 2706 200 MHz Real-Time Recorder and Playback System

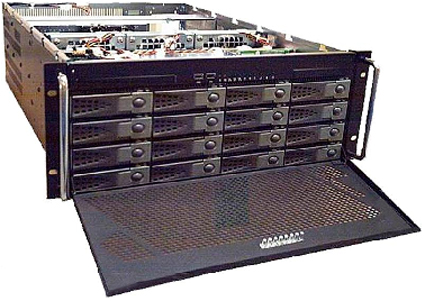

High-Speed Real-Time Recording System Model 2706

  • 1600 MB/sec real-time sustained recording rate
  • 200 MHz, 16-bit A/Ds with multichannel synchronization
  • Captures IF signal frequencies up to 700 MHz
  • Records signal bandwidths from 1 kHz to 80 MHz
  • Complete Intel® Core i7® Windows® 7 workstation
  • Optional digital downconverters & upconverters
  • Optional GPS time stamping
  • Up to 20 Terabytes of hot-swap RAID storage
  • Windows NTFS file format allows immediate access to data for Windows applications
  • Easy-to-use SystemFlow® Record/Playback Control Panel
  • Complete GUI (graphical user interface) with Signal Viewer analysis tool
  • Virtual oscilloscope and spectrum analyzer



Ideal for communications, radar, wireless, SIGINT & SATCOM


The High-Speed Real-Time Recording System Model 2706 includes COTS components tailored to your application. These flexible, customer-selectable features include: A/D channel count, DDC capabilities, D/A and DUC resources for the real-time reproduction of recorded signals, storage drive capacity and GPS time stamping and positioning.

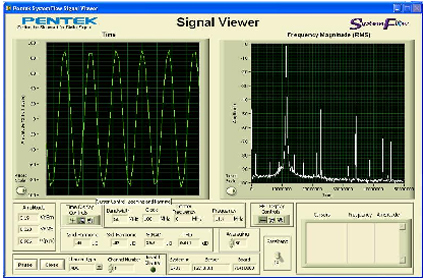

Model 2706 Signal Viewer

High-Speed Real-Time Recording System Model 2706 Signal Viewer


The High-Speed Real-Time Recording System Model 2706 is easy to use with its SystemFlow® recording software package: a GUI (graphical user interface) provides a control panel with intuitive resources to set up system parameters; a powerful Signal Viewer includes two companion analysis tools, a virtual oscilloscope and a virtual spectrum analyzer to monitor the recording session.

To view the datasheet and related technical documentation for the Model 2706, click here.
