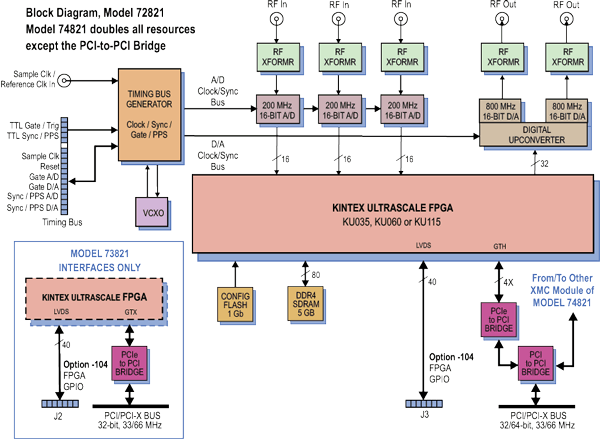

Block Diagram Datasheet Manuals Literature Life Cycle Management Ordering & Warranty Catalogs |
|
|
Hardware and Software Manuals - ( top )
Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.
Part No.
|
Type
|
Description
|
Revision/Date
|
800.48145 | User's Guide | Navigator BSP for Jade User's Guide - Windows & Linux | 4.2 (9/29/2023) |
800.71821 | Operating Manual | 3-Ch 200 MHz A/D, 2-Ch 800 MHz D/A with DDCs, DUC Jade Family XMC Module | 1.3 (3/28/2018) |
822.71821 | Release Note | Model 71821 FDK Revision Histories | 3.0 (11/8/2023) |
