Home > Products > Model 71641

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 71641. Please login or register to manage your profile.

Model 71641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - XMC

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • View product video
  • Ideal radar and software radio interface solution
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • Programmable one- or two- channel DDC (Digital Downconverter
  • 2 GB of DDR3 SDRAM
  • Sync bus for multimodule synchronization
  • PCI Express Gen. 2 interface x8 wide
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • See comparable Jade Xilinx Kintex UltraScale FPGA Module: Model 71841
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 71741



Model 71641

Cobalt Xilinx Virtex-6

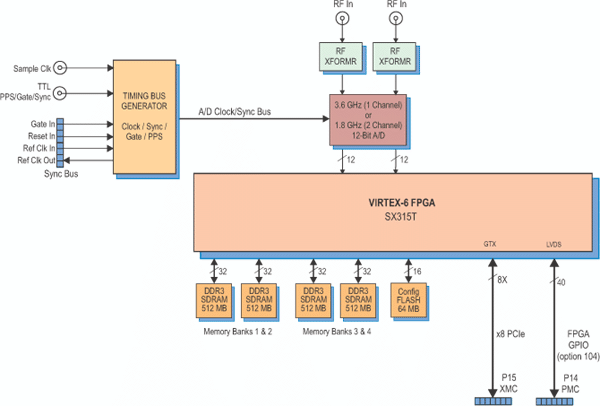

Model 71641 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71640 Operating Manual Model 71640 2-Ch 1.5 GHz (1-ch 3 GHz) A/D Cobalt Family XMC Module 3.9 (1/30/2024)
800.71641 Addendum Model 71641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC 1.5 (9/28/2015)
801.71640 Programmer's Reference ReadyFlow Board Support Libraries for Models 71640 and 71641 3.0 (9/23/2015)
809.7x640 Supplemental Manual Vendor Data Sheets for Model 7x640 Series Operating Manuals 1.1 (6/1/2012)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1A (10/10/2017)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
820.71641 User's Guide Getting Started Guide for Model 71641 1.1 (10/28/2013)
