Model 57810 LVDS Digital I/O with Kintex UltraScale FPGA - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports Xilinx Kintex Ultrascale FPGAs
  • Front panel digital I/O can be used as a status and control or data interface
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available



Request a Quote

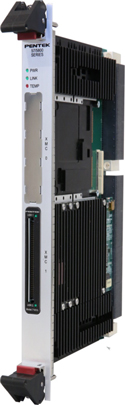

Model 57810

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

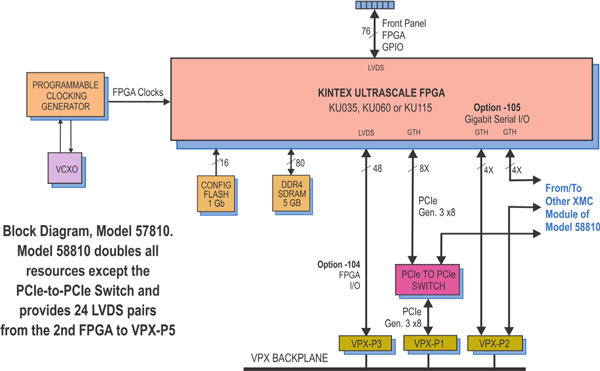

Model 57810 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at sales@pentek.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
821.57810 Operating Manual User Manual Library for Model 57810 1.1 (6/27/2019)
Contact Pentek
For Manual
Model 4811 Navigator FDK (FPGA Design Kit) for Model 57810
Contact Pentek
For Manual
Model 4814 Navigator BSP (Board Support Package) for Linux for Model 57810
Contact Pentek
For Manual
Model 4815 Navigator BSP (Board Support Package) for Windows for Model 57810

Software Products - ( top )

Model
Option
Description
4811 810 Navigator FDK (FPGA Design Kit)
4814 810 Navigator BSP (Board Support Package) for Linux
4815 810 Navigator BSP (Board Support Package) for Windows
