Model 5390 Multifrequency Clock Synthesizer - 3U VPX

This product is no longer available. Please see Model 5290.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Simultaneous synthesis of up to five different clocks
  • Eight SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -125 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 10 MHz
  • Four quad VCXOs allow selection from 16 different base frequencies
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 500 MHz
  • Control and status via the VPX backplane



Model 5390

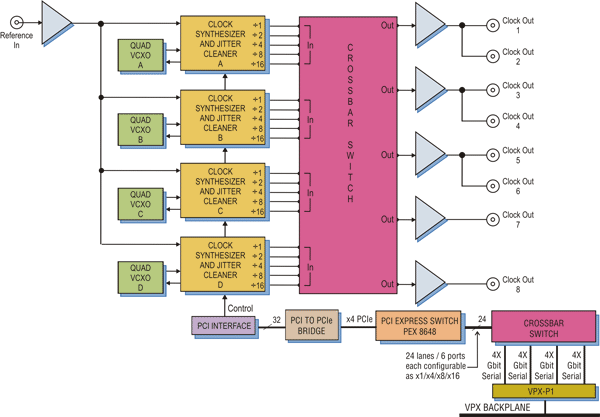

Model 5390 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
