Home > Products > Model 53800

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 53800. Please login or register to manage your profile.

Model 53800 Kintex UltraScale FPGA Coprocessor - 3U VPX

This product is no longer available. Please see Model 52800 or 54800.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • High-performance co-processor platform
  • Supports Xilinx Kintex Ultrascale FPGAs
  • Front panel digital I/O can be used as a status and control or data interface
  • PCI Express (Gen. 1, 2 & 3) interface up to x4
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Ruggedized and conduction-cooled versions available



Model 53800

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

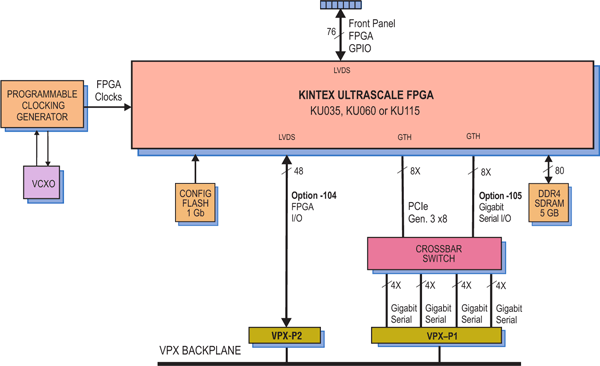

Model 53800 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.
