Model 53664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - 3U VPX

This product is no longer available. Please see Model 52664.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • PCIe output supports VITA 49.0 VITA Radio Transport (VRT) Standard
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs (digital downconverters)
  • Multiboard programmable beamformer
  • Up to 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factors provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Model 53664

Cobalt Xilinx Virtex-6

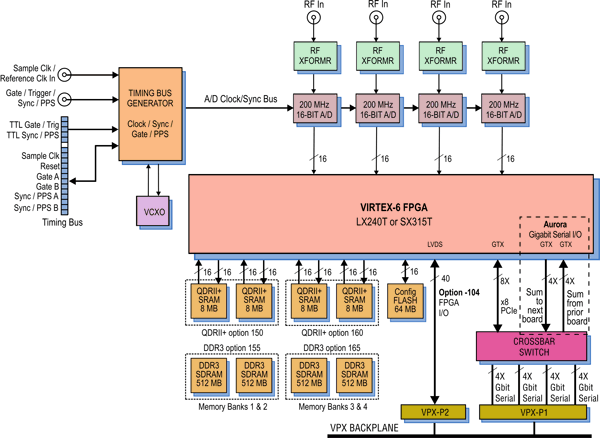

Model 53664 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram
