Model 53630 1 GHz A/D and D/A with Virtex-6 FPGA - 3U VPX

This product is no longer available. Please see Model 52630.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Supports gigabit serial fabrics including PCI Express, Serial RapidIO and Xilinx Aurora
  • One GHz 12-bit A/D
  • One GHz 16-bit D/A
  • Up to 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factors provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 53730



Model 53630

Cobalt Xilinx Virtex-6

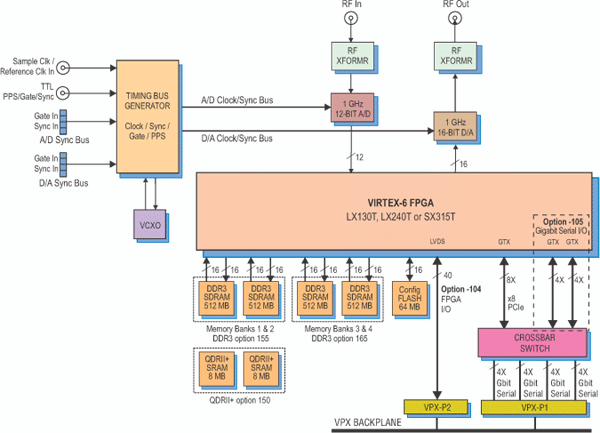

Model 53630 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.53630 Installation Guide Model 53630 1-Ch 1 GHz A/D and 1-ch 1-GHz D/A Cobalt Family VPX Board 1.5 (4/1/2014)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71630 Operating Manual Model 71630 1-Ch 1 GHz A/D and 1-ch 1-GHz D/A Cobalt Family XMC Module 2.2 (7/2/2015)
801.71630 Programmer's Reference ReadyFlow Board Support Libraries for Model 71630 3.0 (5/9/2016)
809.7x630 Supplemental Manual Vendor Data Sheets for Model 7x630 Series Operating Manuals 1.0 (1/20/2012)
815.71630 User's Guide Model 4995A Option 163/173 Windows ReadyFlow BSP for Models 71630, 71730 4.1A (10/9/2017)
816.71630 User's Guide Model 4994A Option 163/173 Linux ReadyFlow BSP for Models 71630 and 71730 4.0 (5/9/2016)
820.53630 User's Guide Getting Started Guide for Model 53630 2.2 (6/11/2014)
