Home > Products > Model 5292

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 5292. Please login or register to manage your profile.

Model 5292 High-Speed System Synchronization and Distribution Amplifier - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Development Systems

Supported Products

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Synchronizes up to four high-speed Cobalt or Onyx I/O modules
  • Synchronizes sampling and data acquisition for multichannel systems
  • Synchronizes gating and triggering functions
  • Clock rates up to 1.8 GHz
  • Front panel MMCX connectors for input signals
  • Front panel µSync connectors compatible with a range of Pentek Cobalt and Onyx modules



Request a Quote

Model 5292

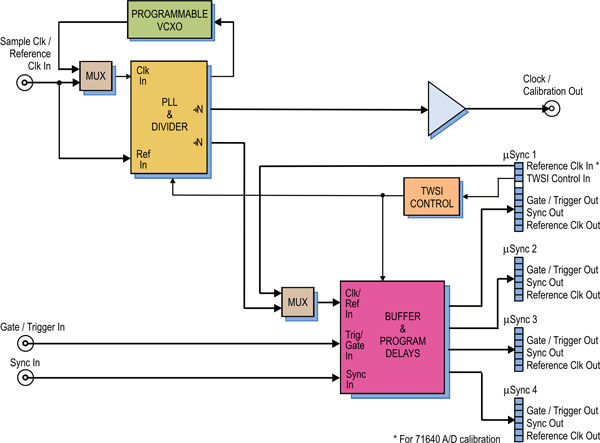

Model 5292 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please contact our sales department at SDL-sales@mrcy.com, 201-818-5900 or contact your local representative.


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.52920 Installation Guide Model 5292 High-Speed System Synchronization and Distribution VPX Board 2.0 (11/25/2020)
800.71920 Operating Manual Model 7192 High-Speed System Synchronization and Distribution Board 4.1 (11/24/2020)
801.71920 Programmer's Reference ReadyFlow Board Support Libraries for Models 7192 and 9192 2.0 (9/29/2015)
816.71920 User's Guide Model 4994A Option 192 Linux ReadyFlow BSP for Models 7192 and 9192 2.0 (9/12/2018)
820.52920 User's Guide Getting Started Guide for Model 5292 1.0 (4/14/2015)

Supported Products - ( top )

Jade Xilinx Kintex UltraScale FPGA Family
Model
Description
Model 52841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - 3U VPX
Model 52141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - 3U VPX
Model 52132 8-Channel 250 MHz A/D with Multiband DDC, Kintex UltraScale FPGA - 3U VPX
Model 52131 8-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - 3U VPX
Cobalt Xilinx Virtex-6 FPGA Family
Model
Description
Model 52671 4-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - 3U VPX
Model 52670 4-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - 3U VPX
Model 52641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX
Model 52640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - 3U VPX
Model 52630 1 GHz A/D and D/A with Virtex-6 FPGA - 3U VPX
Onyx Xilinx Virtex-7 FPGA Family
Model
Description
Model 52741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX
Model 52730 1 GHz A/D and D/A with Virtex-7 FPGA - 3U VPX
FlexorSet FMC Family
Model
Description
Model 5973-324 OnyxFX FlexorSet 4-Ch 16-bit: 500 MHz A/D & 2 GHz D/A - 3U VPX
Model 5973-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - 3U VPX
