Model 52861 4-Channel 200 MHz A/D with DDC, Kintex UltraScale FPGA - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs (digital downconverters)
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x4
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPX™ System Specification)
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 52861

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

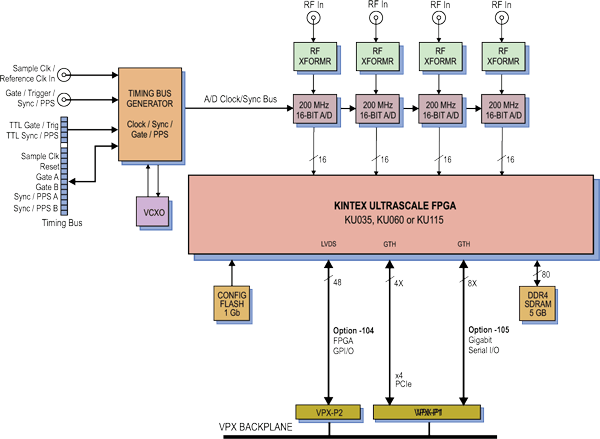

Model 52861 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.52861 Installation Guide Model 52861 4-Channel A/D, with 4 DDCs, Jade Family VPX Module 1.0 (12/20/2016)
800.71861 Operating Manual Model 71861 4-Channel A/D Jade Family XMC Module 1.4 (5/21/2018)
809.71861 Supplemental Manual Vendor Data Sheets for Model 71861 Series Operating Manuals 1.0 (12/6/2016)
820.52861 User's Guide Model 52861 Getting Started Guide 1.0 (12/21/2016)
821.52861 Release Note User Manual Library for Model 52861 2.0 (4/11/2023)
822.71861 Release Note Model 71861 FDK Revision Histories 5.0 (8/10/2023)

Software Products - ( top )

Model
Option
Description
4811 861 Navigator FDK (FPGA Design Kit)
4814 861 Navigator BSP (Board Support Package) for Linux
4815 861 Navigator BSP (Board Support Package) for Windows
