Model 5220 2 Channel Analog RF Wideband Downconverter - 3U VPX

Request a Quote

Block Diagram




Development Systems


Life Cycle Management

Ordering & Warranty


  • Accepts RF signals from 400 MHz to 4000 MHz
  • Accepts RF input levels from -60 dBm to -20 dBm
  • Baseband IF output with up to 390 MHz bandwidth
  • Internal OCXO or external 10 MHz frequency reference


Request a Quote

Model 5220

Bandit Analog Receiver

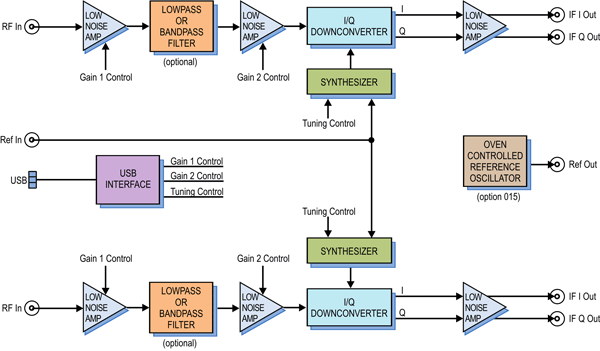

Model 5220 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram
