Pentek Announces Talon Rugged Small Form Factor Recorder Family with Serial Interfaces

40Gb Ethernet, Serial FPDP and LVDS digital input options Real-time aggregate recording rates up to 4 GB/s SSD RAID storage capacity up to 30.6 TB using NTFS files Small form factor 17-pound chassis

Pentek, Inc., today announced the Talon RTR 255x series, a new high performance small form factor (SFF) recorder product line for serial data streams. Optimized for SWaP (size, weight and power), the Pentek Talon RTR SFF product line provides the performance and storage capacity previously only possible in much larger rack-mountable products. Measuring 5.25" H x 8.5" W x 14" D and weighing only 17 pounds, this small package is capable of sustained real-time recording speeds up to 4 GB/s. and can hold up to 30.7 TB of removable SSD storage. Power consumption has been greatly reduced with most systems drawing less than 120 W at full operation.

The Talon RTR 255x series implements Pentek's extensive line of digital serial modules including 40Gb Ethernet, serial Front Panel Data Port (sFPDP) and LVDS. All are capable of both receiving and transmitting data for recording and playback of data streams. The digital serial interfaces provide popular options for remote connection of the recorder to data sources.

• RTR 2555 - Ethernet: 1-, 10-, and 40-Gigabit Ethernet supporting both TCP and UDP protocols, with copper or optical interfaces
• RTR 2556 - Serial FPDP: Up to four SFP connectors supporting copper, single-mode or multimode fiber to accommodate all popular sFPDP interfaces
• RTR 2558 - LVDS (low-voltage differential signaling): Utilizes a 32-bit LVDS interface that can be clocked at speeds up to 250 MHz. It includes Data Valid and Suspend signals and provides the ability to turn these signals on and off as well as control their polarity.

An integrated high speed RAID controller is coupled with Enterprise class SSDs for hours of real-time, wide bandwidth data capture. Up to eight hot-swap SSDs deliver a total storage capacity up to 30.6 TB with support for RAID levels 0, 5 or 6. All eight SSD data drives and the single operating system SSD can be easily removed from front panel drive bays in seconds. Drives are mounted on sleds for easy transfer to an offload system so the recorder can remain installed while data is transported to the lab.

"The new Talon RTR Small Form Factor Recorders allow engineers and integrators to add real-time high speed recording to their system in environments where space is constrained," said Chris Tojeira, Recording Systems Director, Pentek. He added, "We're excited to provide the widest record bandwidths and largest storage capacities available in a package this size."

Ease of Operation

Talon recorders are built on Windows OS with an Intel Core i7 processor and provide both a Windows-based GUI (graphical user interface) and API (Application Programmer's Interface) to control the system. SystemFlow provides point-and-click configuration management and storage of custom configurations for single-click setup. A user API allows custom recorder control interfaces to be easily built. Users can install post-processing and analysis tools to operate on the data that is saved to the native NTFS file system.

Options and Simulation Package

The Talon SFF recorders offer an optional GPS receiver for precise time and position stamping. An ATX power supply accepts 110V-240V AC, drawing under 150W and typically around 100W. Models have options for a 6-30 VDC power supply and a removable operating system drive. Several options for digital inputs are available. I/O on all models includes USB 2.0, 3.0 and 3.1 ports and dual Gigabit Ethernet connections.

Pentek's SystemFlow Simulator provides a "test drive" of the SystemFlow recording software installed on all Talon recording systems. The simulator allows users to operate the standard GUI and the SystemFlow API. A free trial package is available for download here.

Talon Recorder Family

Pentek's Talon Recording Systems are high-speed recording and playback systems capable of streaming data to disk in real time. They are available in portable, rackmount and small form factor configurations, allowing operation in a variety of environments.

Photos and Attachments

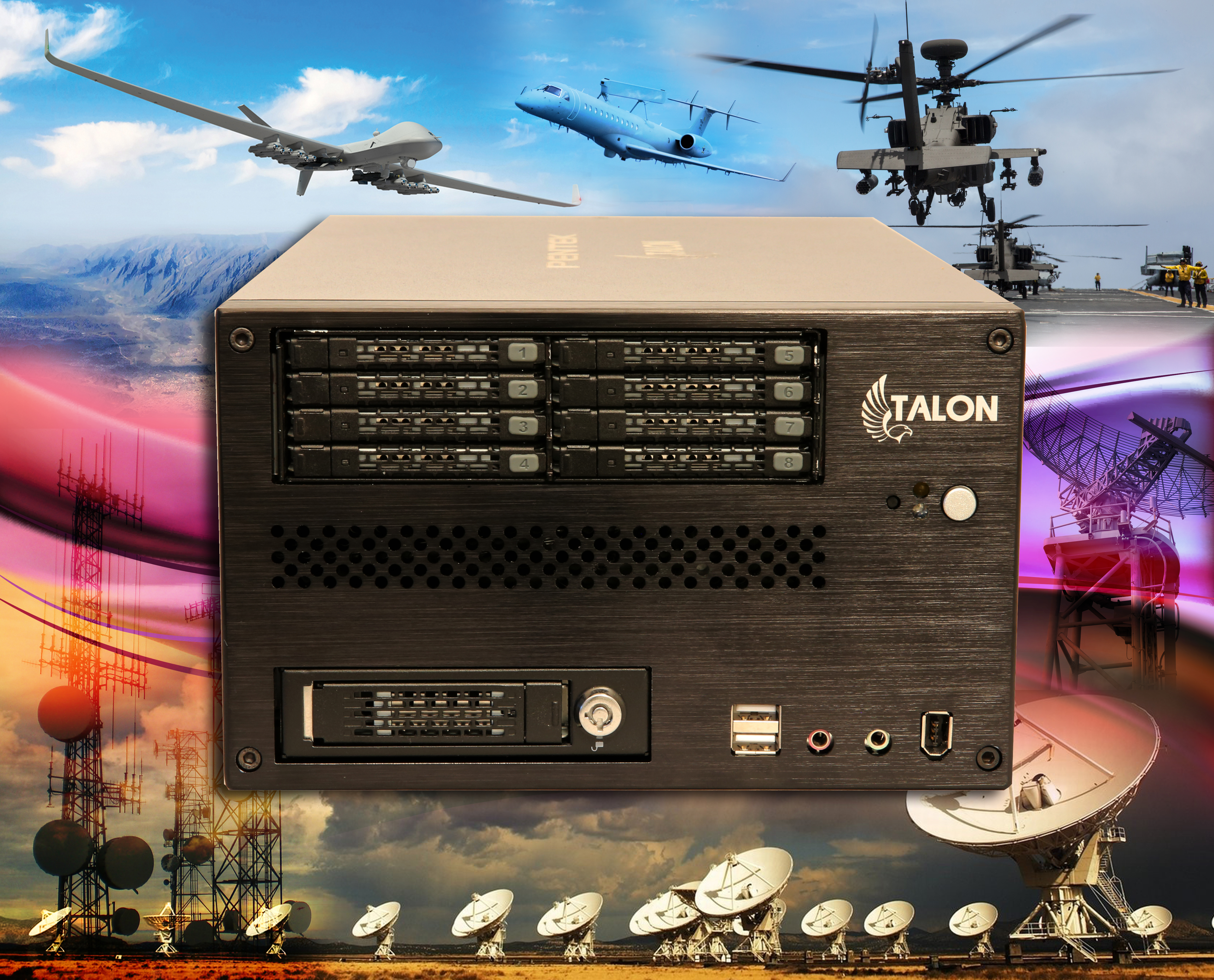

• RTR255xPR.jpg

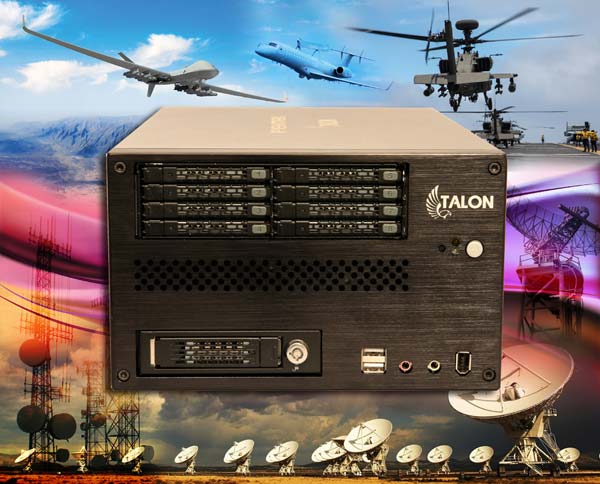

• RTR255xPRsml.jpg
