Strategies for Deploying Xilinx's Zync UltraScale+ RFSoC

by Bob Sgandurra

On February 21st, 2017, Xilinx® announced the introduction of a new technology called RFSoC with the rather dramatic headline "Xilinx Unveils Disruptive Integration and Architectural Breakthrough for 5G Wireless with RF-Class Analog Technology." The proposition was simple: add RF-class analog to digital and digital to analog data converters to Xilinx's already powerful MPSoC, ARM processor enhanced family of high performance FPGAs.

Xilinx Unveils Disruptive Integration and Architectural Breakthrough for 5G Wireless with RF-Class Analog Technology

And while the concept was simple, the implications were profound, changing the way engineers could design and package small, high channel count systems. And this technology not only offers new possibilities for 5G applications, but has significant impact in military and scientific systems, justifying the claim in Xilinx's announcement. To get better appreciation of the capabilities of RFSoC and understand how to best use the advantages of this technology, it's worth taking a quick look at current trends in data converters and signal processing.

What is RFSoC?

RFSoC, or more properly, Zynq® Ultra-Scale+™ RFSoC, is based on Xilinx's prior family, the Zynq UltraScale+ MPSoC. The MPSoC is a system-on-chip architecture that includes up to four ARM Cortex-A53 application processors and two ARM Cortex-R5 real-time processors integrated into the UltraScale+ programmable logic. This solution offers the software programmability and flexibility of a processor with the hardware programmability and performance of an FPGA in a single IC.

RFSoC builds on the MPSoC foundation and adds eight 4 GSPS 12-bit A/Ds, each equipped with programmable Digital Downconverters (DDCs) and eight 6.4 GSPS 14-bit D/As, each equipped with Digital Upconverters (DUCs). While other A/D and D/A configurations are available, we'll consider the eight A/D and eight D/A configuration for the rest of this article. Figure 1 shows the similarity between the MPSoC and RFSoC.

Improvements in SWaP and Cost

A common term in military applications is SWaP, which stands for Size, Weight and Power and refers to the ongoing requirement to reduce these attributes for communications, reconnaissance, radar and various types of signal acquisition and processing systems. The need for smaller, lighter, and use of less power becomes obvious when you think about where these systems are often deployed. Unmanned vehicles like unmanned aerial vehicles (UAV) and unmanned underwater vehicles (UUV) frequently require stealth to achieve their mission. Smaller, lighter and use of less power usually equates to stealthier, enabling these systems to be more effective.

Manpack (or womanpack) systems where the communications or direction-finding equipment and its associated power supply are worn by personnel are another target for SWaP reduction. Here again, smaller, lighter and use of less power is needed for making a practical, humancarried system.

Xilinx's Zynq UltraScale MPSoC versus RFSoC

RFSoC's high level of integration provides a significant amount of SWaP reduction when compared to designing the same functionality with discrete components. Figure 2 shows the reduction in size by representing component footprints graphically. In the comparison, each component is roughly to scale, and space has been left between the discrete components to model a typical PCB layout, where ICs need space between them for assembly and placement of passive components. The RFSoC implementation can save 50% or more in overall size compared to the discrete approach.

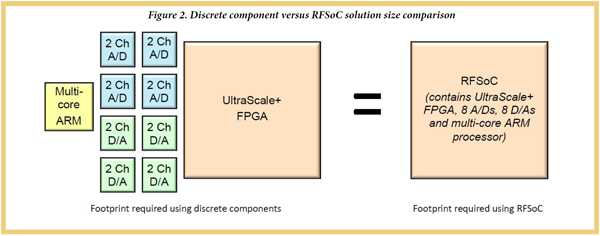

Discrete component versus RFSoC solution size comparison


While RFSoC can reduce weight at the component level, that savings is minimal when you consider the total weight of nine ICs compared to a single RFSoC. Where weight savings can be appreciated is when you look at power. With each watt of power in a system comes the weight of a cooling solution, either in metal or composite heatsinks, or in some systems, more exotic solutions like liquid and vapor cooling. RFSoC can easily bring power savings of 30% to 40% or more compared to typical discrete solutions, thereby reducing the cooling solution's complexity and weight. And in portable systems, every watt that can be eliminated results in smaller, lighter batteries and longer operation time.

A key reason for the reduced power of RFSoC is the elimination of the interfaces needed to connect the various ICs in a discrete solution. Most data converters sampling at 1 or 2 GHz or higher depend on serial interfaces to move digital data between the converter and the FPGA. These interfaces expend power at both the data converter side and the FPGA side in serializing and deserializing (SerDes) circuitry. The most common serial interface protocol used for converters is JESD204.

By integrating the converters directly into the FPGA, the serial interfaces are eliminated as well as data transfer latency which the SerDes process and protocol introduce. (More on serial vs. parallel converter interfaces and latency later in this article.)

Another parameter often tacked onto SWaP is cost, sometimes referred to as SWaP-C. Here again RFSoC address the requirement. The same comparison used earlier of implementing the functions of the RFSoC as discrete components yields the following results (see Figure 3):

Discrete component versus RFSoC solution cost comparison


The cost of a typical multi-core ARM processor + (4 x Dual 4 GSPS A/Ds) + (4 x Dual 6.4 GSPS D/As) + Kintex UltraScale+ FPGA (with equivalent programmable logic and DSP density of the RFSoC) = approximately 2x the cost of the same functionality delivered in a single RFSoC.

While savings at any level is always welcome, the real benefit of the reduced cost can be seen in systems where many channels of A/Ds and D/As are required. Massive multiple-input multiple-output (MIMO) antennas are being targeted for applications from Wi-Fi to LTE to 5G. Massive MIMO antennas typically start at 8x8 configurations (8 receive channels and 8 transmit channels) and can be multiples of that configuration. This is a perfect match for the converters in the RFSoC.

Another high-channel-count application is phased array radar. The Multi-function Phased Array Radar (MPAR) initiative combines the functions of several national radar networks into a single system for aircraft and weather surveillance. It is not uncommon for these antenna arrays to be specified with 64 or more elements, with each element requiring an A/D and D/A pair combined with signal generation and receive and control processing. With these systems as well as military surveillance and targeting systems where hundreds of elements can be required, the savings found in RFSoC's integrated solution can add up quickly.

Data Converter Interfaces

Up to this point, the advantages of RFSoC have been primarily in improving on already available solutions: saving on size, weight, power, and cost compared to discrete component solutions. But by integrating the data converters into the FPGA, RFSoC offers a solution that is currently unavailable using existing technology. To understand this you must first look at how data converters connect to FPGAs. Using A/Ds as an example (but this is the same for D/As), connecting a 12-bit A/D to an FPGA using a parallel interface might look like Figure 4, where each bit is represented by an LVDS pair and an additional pair is used for data ready or clock.

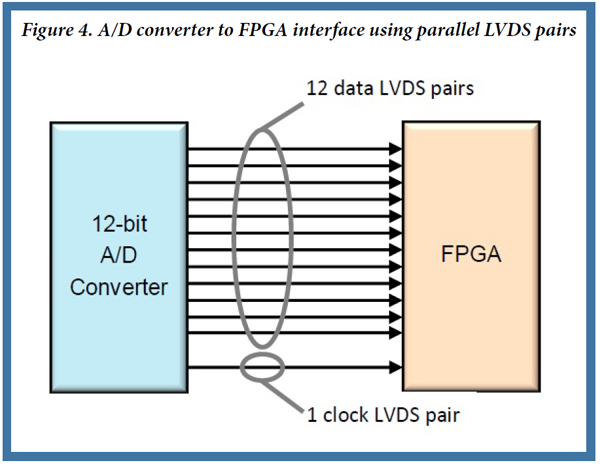

A/D converter to FPGA interface using parallel LVDS pairs


In some cases, the interface can make use of double data rate (DDR) technology where data is transferred on the rising and falling edge of the clock, effectively doubling the amount of data transferred in a single clock cycle. But even with DDR, parallel converter interfaces become problematic for data converters with sample rates above about 1.5 GHz due to the speed limitations of the LVDS interfaces on FPGAs. To overcome this, one solution is to use a 1:2 demultiplexed interface (DeMux) where data is sent over two parallel interfaces, each running at half of the sample rate. In the 12-bit A/D converter example, if the converter is sampling at 2 GHz, each of the 12-bit paths following the DeMux are running at 1 GHz. This keeps each 12-bit interface below the maximum clock rate allowed by the FPGA LVDS interface but still delivers the data needed to support the 2 GHz sample rate (see Figure 5).

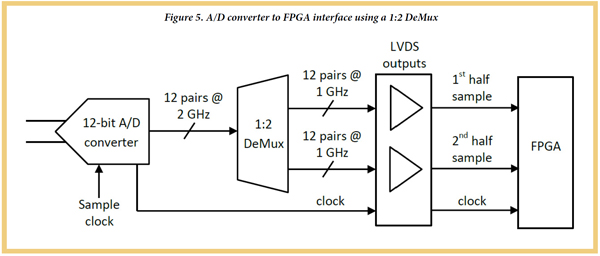

A/D converter to FPGA interface using a 1:2 DeMux


But this solution also becomes problematic at higher speeds. Using this same technique, a 4 GHz A/D would require a 1:4 DeMux. This quickly starts to become a PCB design challenge when you consider the number of pairs needed and that these signals need to be critically routed to maintain tight length matching between pairs so data arrives at the FPGA across all 12 bits at the same time. In addition to the routing challenge, a 12-bit A/D converter now requires 4 sets of 12 pairs (or 96 individual I/O pins, not including clock pins) to interface to the FPGA. In a typical FPGA device where 400 to 600 I/O pins might be available for interfacing all parallel devices like A/D and D/A converters and memory, half the pins could easily be used to connect just two 4 GHz A/D converters.

An alternate solution to the high-pincount interface is to use a serial interface to connect data converters. JESD204 was created for this exact purpose. JESD204 makes use of the FPGA gigabit serial interfaces instead of LVDS. Figure 6 shows a PCB routed for a 1 GHz 12-bit A/D connected via parallel LVDS and a PCB routed for a similar 1 GHz 12-bit A/D connected via four high-speed serial interfaces (or lanes) using JEDS204. The four lanes pose less of a PCB design challenge because of the reduced number of signals as well as the fact that the interface standard includes clock and data recovery features which eliminate the need to critically match the length of all lanes.

Parallel versus serial PCB routing


So while JESD204 can be a good solution for many high-speed data converter applications, it's not a perfect solution. The JESD204 IP and gigabit serial interface add about 1W to the power budget for every four lanes used. JESD204 is a proprietary IP core and typically requires a paid license to use it. In addition, using JESD204 can add complexity to the FPGA IP design. In applications where multiple converters across multiple ICs need to be synchronized, JESD204 requires a more elaborate clocking solution than parallel interfaces adding some additional circuitry and complexity. But while each of these obstacles can add power, cost, complexity and increased size, none is typically a showstopper.

Where JESD204 becomes a true impediment for some applications is in link latency. Where a parallel converter interface can delay the data by, at most, a few sample clock cycles for local buffering, the JESD204 protocol and the SerDes required to support it can add 80 sample clock cycles or more of latency from when the data is converted to when it is available in the FPGA for an A/D converter and in the reverse direction for a D/A converter. In some applications where data is streamed and processing results are not required in real-time, this poses no problem. As long as the data arrives at the FPGA without losing any samples, how long it takes to get there is not critical. But in many applications, including highspeed, tight control loop systems, some radar systems, and electronic warfare like countermeasures, where there is a very short time allowed for acquiring the data, processing it and turning it around, this latency eliminates JESD204-based solutions.

So, what does all this have to do with RFSoC? With the data converters integrated directly into the FPGA using parallel interfaces, they don't require the prohibitively high-pin-count external connections needed for discrete parallel interface converters, allowing more converter channels to be supported by a single FPGA. In addition, it does not have the latency associated with a JESD204 serial interface. This makes RFSoC an attractive solution for high-channel-count and low-latency applications.

Hardware Design with RFSoC

The circuit density and small size of the RFSoC create some unique challenges for circuit and PCB designers when engineering systems using the FPGA. Designing and laying out the PCB for the analog interface containing 16 channels (8 A/D and 8 D/A) requires attention to even the smallest details, to maintain signal quality and reduce crosstalk in such a dense configuration. Similarly, the RFSoC's GTYs (gigabit serial interfaces) are capable of running at higher than 32 Gb/sec. This poses another layout and routing challenge to the PCB design to maintain these speeds with signal integrity. For some operating modes, the RFSoC requires up to nine different supply voltages. Add to that another four or five supplies for peripheral circuitry and the power generation and management design can become complex very quickly. While each of these challenges can be demanding on its own, consider that many of the applications where RFSoC can bring the greatest benefit are in space-restricted and harsh environments, exacerbating the design challenge.

At Pentek, we have taken a unique approach to delivering RFSoC functionality to our customers. Our QuartzXM™ eXpress Module is a small 2.5" x 4" board containing the Zynq UltraScale+ RFSoC FPGA and all peripheral and power circuitry needed for support and operation (see Figure 7). The concept behind the QuartzXM is simple: to provide the RFSoC functionality in a small, fully designed package that can be used on different carriers as needed to match the specific interface requirements of different applications. By offering the RFSoC on the QuartzXM, Pentek is delivering not only the RFSoC functionality, but is delivering a solution where many of the most demanding circuitry and packaging challenges have been solved.

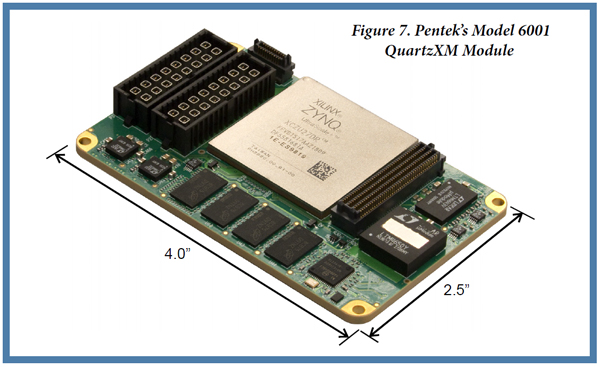

Pentek's QuartzXM eXpress Module


Our Quartz™ line includes board products in standard from factors like 3U VPX (see Figure 8) and PCIe, delivering the QuartzXM in turn-key solutions ready for immediate deployment. The products are available in commercial and rugged, conduction-cooled versions, and in many situations this will be the final deployed solution. But with the modular design of QuartzXM, the standard form factor board can be the platform where the application is developed and proven, and then the QuartzXM module can be migrated to a custom carrier platform for deployment.

Software and IP Design

With each new family of FPGA, there has been a constant progression towards more powerful processing solutions. Each new family adds more logic density, faster logic fabric, more DSP resources, more on-chip memory, faster interfaces, and now with RFSoC, high-sample-rate A/D and D/A converters. While these new capabilities are certainly welcome, and they do enable more and more complex applications to be targeted at FPGAs, they also raise the bar for better and more capable design tools to handle the increasing complexity and size of the new IP that can be created.

Xilinx has addressed the design tool challenge with their Vivado® Design Suite. It includes tools for every aspect of the design cycle. The latest version has improvements in performance, with faster routing and more efficient FPGA resource usage, allowing denser designs. Vivado also addresses the increasing design complexity challenges with tools for creating processing IP with C-language specification, an integrated software development kit that targets the ARM processors, and plug-and-play block-diagram-based IP integration with IP Integrator. While all these tool improvements go a long way in enabling both software and IP engineers, the job of creating a complete system solution can be greatly accelerated when manufacturers of FPGA based hardware products provide IP and software libraries to support the specific features of the hardware. The better the foundation of software and IP that the manufacturer provides for the engineer to build an application on, the faster the engineer can complete the job of producing a final, robust system.

All Pentek hardware products include a full suite of FPGA-based functions, allowing the product to be used immediately in a range of applications without the need to create any FPGA IP. For all of our A/D or D/A-based products, the functions can include data acquisition and waveform generator engines, data tagging and metadata creation, VITA-49 packet creation, digital downconverters, multi-channel and multi-board synchronization, and optimized DMA for moving data on and off board through PCIe or 10GigE, in addition to IP targeted at specific applications.

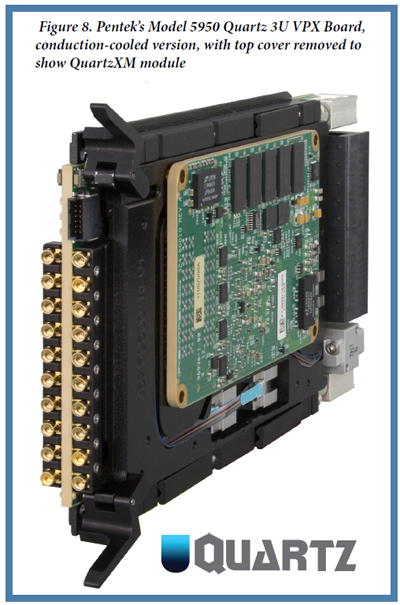

Pentek's Model 5950 Quartz 3U VPX Board, conduction-cooled version, with top cover removed to show QuartzXM module

RFSoC again brings new challenges and solutions with the sheer amount of data the A/D and D/A converters can introduce and the minimum latency interfaces between data converters and programmable logic in time-critical applications. Pentek's Quartz products address some of the most common requirements of RFSoC-targeted applications with new built-in IP ready to use with no additional IP design needed. These include a programmable digital RF memory (DRFM), a programmable chirp generator, an enhanced acquisition engine that supports the full bandwidth 4 GHz sample rate with options to snapshot data to on-board memory or to stream over dual 100 GigE interfaces, an optimized x16 decimator for data reduction in highchannel-count applications, and an enhanced waveform generator engine for outputting D/A data supplied by the 100 GigE interface or from waveforms loaded to on-board memory. In each case, the installed functions can provide a final solution or be the basis of a custom solution when built upon using Pentek's Navigator™ FPGA Design Kit (FDK) (see Figure 9).

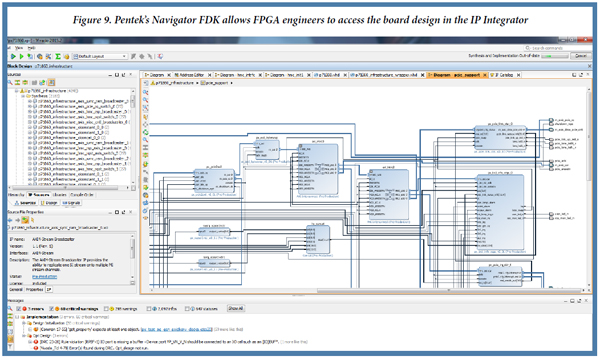

Pentek's Navigator FDK allows FPGA engineers to access the board design in the IP Integrator


The Navigator FDK provides a library of all of Pentek's IP functions as blocks that can be used in Xilinx's Vivado IP Integrator, giving the IP designer immediate access to the product's entire FPGA design as a block diagram. Individual IP blocks can be removed, modified, or replaced with custom IP to meet the application's processing requirements. If at any time a designer needs to work with the VHDL source code directly, it is always accessible in a source window, as well as full on-line documentation of every Pentek IP core. Navigator FDK leverages the features of Vivado, allowing an engineer to start designing with the FDK immediately without the need to learn new software tools and streamlines the path to a final application solution by providing the foundation for custom IP to be built on.

The companion product to Pentek's Navigator FDK is the Navigator Board Support Package (BSP). With every creation of, or modification to an IP block, a change to software, most likely running on the RFSoC's ARM processors, to control the new or modified IP, might be needed. The Navigator BSP was designed to help manage this relationship between IP and software. The BSP provides C language functions and utilities structured to map the IP blocks provided in the FDK. This one-to-one relationship between IP and the software to control it is another path to manage the increasing complexity of applications (see Figure 10).

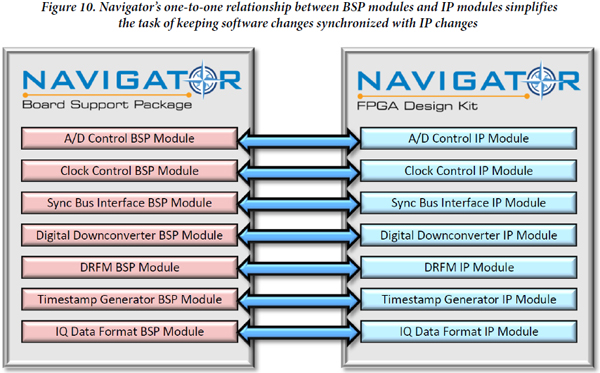

Navigator's one-to-one relationship between BSP modules and IP modules simplifies the task of keeping software changes synchronized with IP changes


RFSoC brings new possibilities for addressing some of the most challenging requirements of high-bandwidth, highchannel-count systems. Understanding how this new technology can specifically address SWaP-C and low latency applications is key to matching it to many applications that can benefit from it the most. And while Xilinx has provided a rich set of tools, IP, and support at the chip level, equipment manufacturers like Pentek, using RFSoC at the center of their board architecture, can leverage the power of RFSoC by providing unique solutions to streamline the path from RFSoC to a deployed system solution.
