Model 7631A 16-Channel Multiband Receiver with A/D, Virtex-II FPGA - PCI

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Two 80 or 105 MHz, 14-bit A/D converters
  • 16 channels of multiband digital downconverters
  • 5 kHz to 10 MHz output bandwidth for fs = 100 MHz
  • 250 MHz input bandwidth
  • Ideal for IF sampling
  • User-configurable Xilinx Virtex-II FPGA
  • Custom FPGA I/O through a 64-pin DIN connector
  • Bypass path allows direct capture of A/D data
  • Front panel clock and sync bus
  • Synchronization for up to 80 modules (with Model 9190)
  • EDN Top 100 Hot Products Winner!



Model 7631A

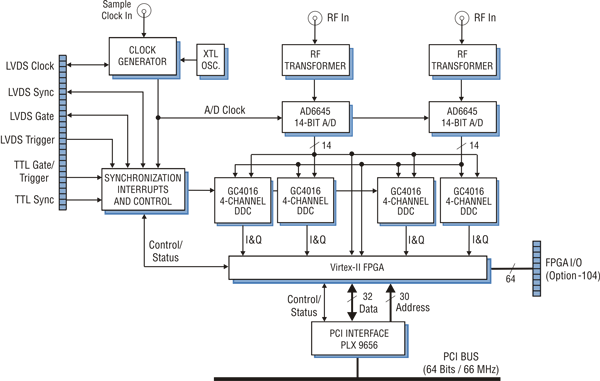

Model 7631A Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.7631A Operating Manual Model 7631A Digital Receiver PCI Board A (11/7/2008)
803.71310 User's Guide Model 4996 Option 131, VxWorks Driver for Model 7131 2.2 (6/5/2012)
805.71310 User's Guide Model 4995 Option 131, Windows Driver for Model 7131 2.0 (6/4/2012)
806.71310 User's Guide Model 4994 Option 131, Linux Driver for Model 7131 2.1 (6/5/2012)
