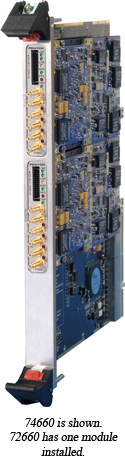

Model 74660 8-Channel 200 MHz, 16-bit A/D with Virtex-6 FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Eight 200 MHz 16-bit A/Ds
  • Up to 4 GB of DDR3 SDRAM; or: 64 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 74760



Model 74660

Cobalt Xilinx Virtex-6

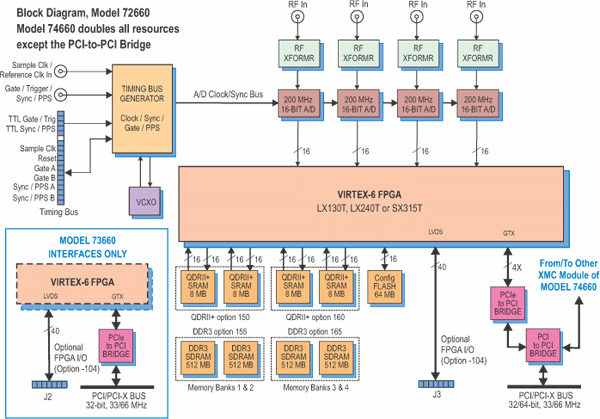

Model 74660 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71660 Operating Manual Model 71660 4-Channel A/D Cobalt Family XMC Module 2.13 (12/27/2017)
800.71667 Addendum Model 71660 Option 260 Front Panel 1.0 (1/23/2012)
801.71660 Programmer's Reference ReadyFlow Board Support Libraries for Models 71660, 71661, 71662, and 71663 4.0 (2/23/2016)
809.7x660 Supplemental Manual Vendor Data Sheets for Model 7x660 Series Operating Manuals 1.0 (1/16/2012)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3A (9/12/2023)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
