Model 72862 4-Channel 200 MHz A/D with Multiband DDCs, Kintex UltraScale FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four wideband DDCs and
  • 32 multiband DDCs (digital downconverters)
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • Optional LVDS connections to the FPGA for custom I/O
  • Ruggedized version available



Model 72862

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

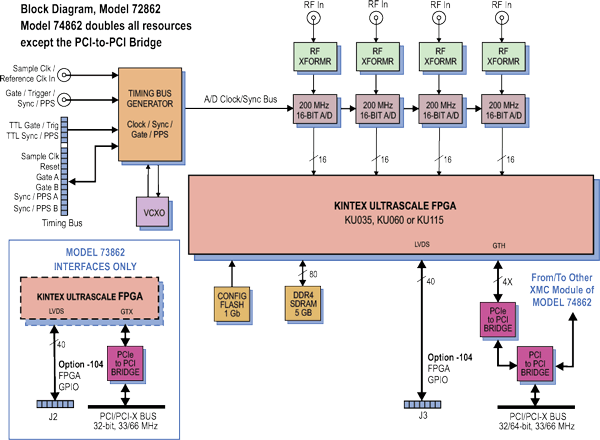

Model 72862 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71862 Operating Manual Model 71862 4-Channel A/D, 4 DDCs Jade Family XMC Module 1.2 (5/21/2018)
822.71862 Release Note Model 71862 FDK Revision Histories 2.2 (8/10/2023)
