Model 7191 Programmable Multifrequency Clock Synthesizer - PMC

Request a Quote

Block Diagram





Life Cycle Management

Ordering & Warranty


  • Simultaneous synthesis of up to up to 5 different clocks
  • Eight SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -105 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 100 MHz
  • Four programmable VCXOs with 32-bit tuning resolution
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 700 MHz
  • Control and status via PCI bus interface


Request a Quote

Model 7191

Winner of the Editor's Choice Award by Military Embedded Systems magazine!
Editor's Choice
Award by Military
Embedded Systems

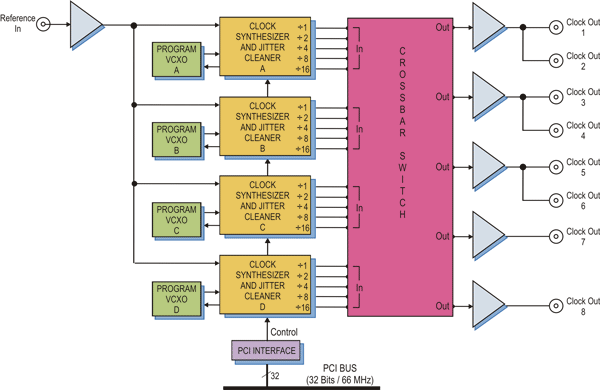

Model 7191 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

John Eklund
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71910 Operating Manual Model 7191 Multifrequency Clock Synthesizer PMC Module 1.0 (1/30/2012)
801.71911 Programmer's Reference ReadyFlow Board Support Libraries for Model 7191 1.0 (3/26/2012)
815.71910 User's Guide Model 4995A Option 191 Windows ReadyFlow BSP for Model 7191 1.0 (5/29/2012)
816.71910 User's Guide Model 4994A Option 191 Linux ReadyFlow BSP for Model 7191 1.1 (9/15/2011)

Software Products - ( top )

4994A 191 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 191 ReadyFlow Board Support Packages (BSPs) for Windows
