Model 7141 Dual Digital Up/Downconverter with Virtex-II Pro FPGA - PMC/XMC

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio transceiver solution
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • Two 125 MHz 14-bit A/Ds
  • Input signal bandwidth: 50 MHz
  • Four digital downconverters
  • One digital upconverter
  • Two 500 MHz 16-bit D/As
  • 512 MB of DDR SDRAM
  • Xilinx Virtex-II Pro FPGA
  • Up to 1.28 seconds of delay or data capture at 100 MHz
  • Dual timing buses for independent input and output clock rates
  • LVDS clock/sync bus for multi-module synchronization
  • 32 pairs of LVDS connections to the Virtex-II Pro FPGA for custom I/O on P4
  • Optional factory-installed IP Cores available
  • Ruggedized and conduction-cooled versions available



Model 7141

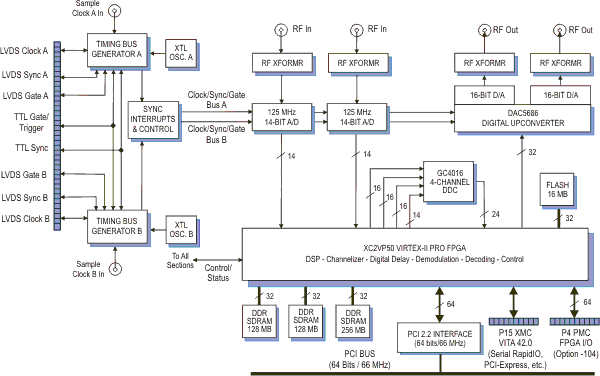

Model 7141 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71410 Operating Manual Model 7141 Dual-Channel Multiband Transceiver PMC/XMC Module A.4 (6/15/2010)
801.71400 Installation Guide Model 4999 Opt. 140/141, ReadyFlow Board Support Libraries Model 7140/7141 1.1B (1/21/2008)
801.71401 Programmer's Reference Model 4999 Opt.140/141, ReadyFlow Board Support Libraries Model 7140/7141 1.1B (1/21/2008)
801.71402 Installation Guide Model 4999 Opt.140/141-420, ReadyFlow Board Libraries Model 7140/7141-420 1.1C (4/15/2008)
801.71403 Addendum Model 4999 Opt.140/141-420 7140/7141 ReadyFlow Programmer's Reference Guide 1.1D (9/27/2010)
801.71404 Installation Guide Model 4999 Opt.140/141-430, ReadyFlow Board Libraries Model 7140/7141-430 1.1 (8/15/2008)
801.71405 Addendum Model 4999 Opt.140/141-430,7140/7141 ReadyFlow Programmer's Reference Guide 1.1 (8/15/2008)
803.71400 User's Guide Model 4996 Option 140/141/142, VxWorks Driver for Model 7140/7141/7142 2.3A (1/18/2008)
805.71400 User's Guide Model 4995 Option 140/141/142, Windows Driver for Model 7140/7141/7142 2.3B (1/18/2008)
806.71400 User's Guide Model 4994 Option 140/141/142, Linux Driver for Model 7140/7141/7142 2.3A (1/18/2008)
809.71410 Supplemental Manual Vendor Data Sheets for Model 7x41 Series Operating Manuals A (11/12/2008)
815.71400 User's Guide Model 4995A Option 140/141 Windows ReadyFlow BSP for Model 7140/7141 1.1 (11/23/2009)
816.71400 User's Guide Model 4994A Option 140/141 Linux ReadyFlow BSP for Model 7140/7141 1.1A (1/23/2009)
820.71410 User's Guide Getting Started Guide for Model 7141 A (10/7/2010)
