Model 6826 Dual 2 GHz, 10-bit A/D VME Board with Virtex-II Pro FPGA - VXS

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • One or two 10-bit, 2 GHz A/D converters
  • Dual 4X full duplex VXS links
  • Two or four front panel FPDP or FPDP II outputs
  • Up to 1 GB DDR SDRAM
  • Xilinx Virtex-II Pro FPGA
  • Multiboard synchronization
  • See also Model 6890 Clock, Sync and Gate Distribution VME Board

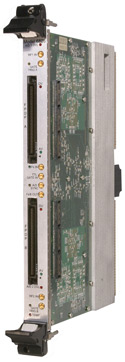

Model 6826

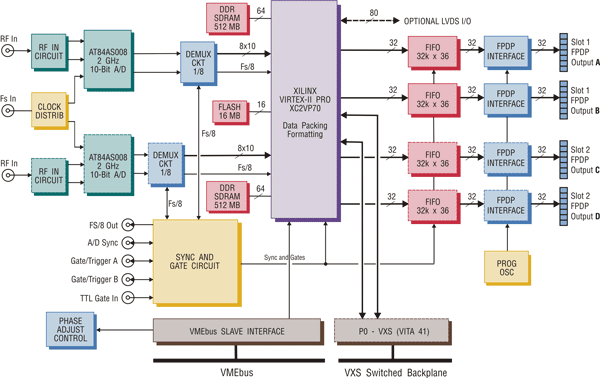

Model 6826 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.68260 Operating Manual Dual-Channel 2-GHz A/D Converter VMEbus Board with FPDP Output B.3 (6/25/2009)
800.68261 Addendum Model 6826 Option 501 Addendum A (6/15/2010)
801.68260 User's Guide Model 4999 Option 826, ReadyFlow Board Support Libraries for Model 6826 1.4B (10/9/2008)
809.68260 Supplemental Manual Vendor Data Sheets for Model 6826 Operating Manual A (11/7/2007)
