Home > Products > Model 6230

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 6230. Please login or register to manage your profile.

Model 6230 32-Channel Narrowband Digital Receiver and A/D with Virtex-E FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Four 65 or 80 MHz, 14-bit A/D converters
  • Front panel FPGA I/O connector
  • All receivers can select any of the four inputs
  • 90 MHz input bandwidth
  • 3.2 kHz to 1.6 MHz output bandwidths for fs = 64 MHz
  • Front panel clock and sync bus to sync multiple boards



Model 6230

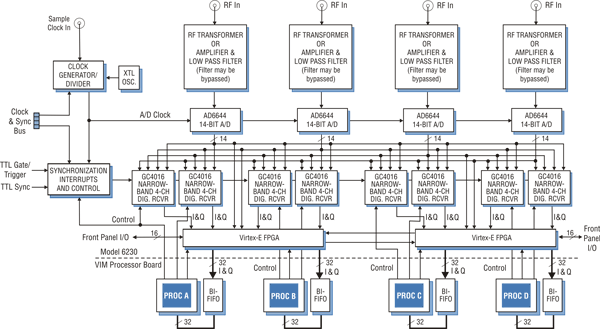

Model 6230 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.62300 Operating Manual Model 6230/6231 32/16-Channel Digital Receiver VIM Module C.1 (10/23/2006)
801.62300 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6230/6231 4.0C (1/10/2005)
803.62300 User's Guide Model 4996 Option 230, VxWorks Driver for Model 6230/6231 1.1 (4/15/2011)
