Home > Products > Model 56132

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 56132. Please login or register to manage your profile.

Model 56132 8-Channel 250 MHz A/D with Multiband DDC, Kintex UltraScale FPGA - AMC

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Eight 250 MHz 16-bit A/Ds
  • Eight wideband DDCs (digital downconverters)
  • 64 multiband DDCs
  • 5 GB of DDR4 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional LVDS connections to the FPGA for custom I/O
  • AMC 1 compliant
  • IPMI 2.0 compliant MMC (Module Management Controller)
  • Ruggedized version available



Model 56132

Jade Xilinx Kintex UltraScale FPGA Family Brochure
Jade Xilinx UltraScale

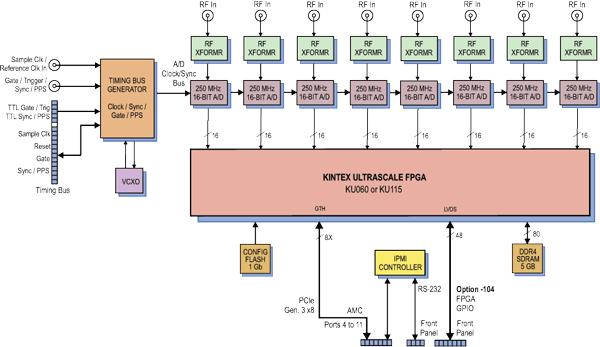

Model 56132 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Jade User's Guide - Windows & Linux 4.2 (9/29/2023)
800.71132 Operating Manual Model 71132 8-Channel 250 MHz A/D with Multiband DDC, XMC Module 1.1 (3/27/2018)
822.71132 Release Note Revision Histories for 71132 FDK 4.0 (11/8/2023)
